Allowable limit ：68mm.
Check the abrasion of the driven wheel.
Measure the external diameter of the right-half shaft sleeve
of the driven wheel.
Allowable limit ：32.94mm.
Measure the internal diameter of the left-half sliding sleeve
of the driven wheel.
Allowable limit ：33.06mm.
14.6.1 Replacement of the right-half
bearing of driven wheel

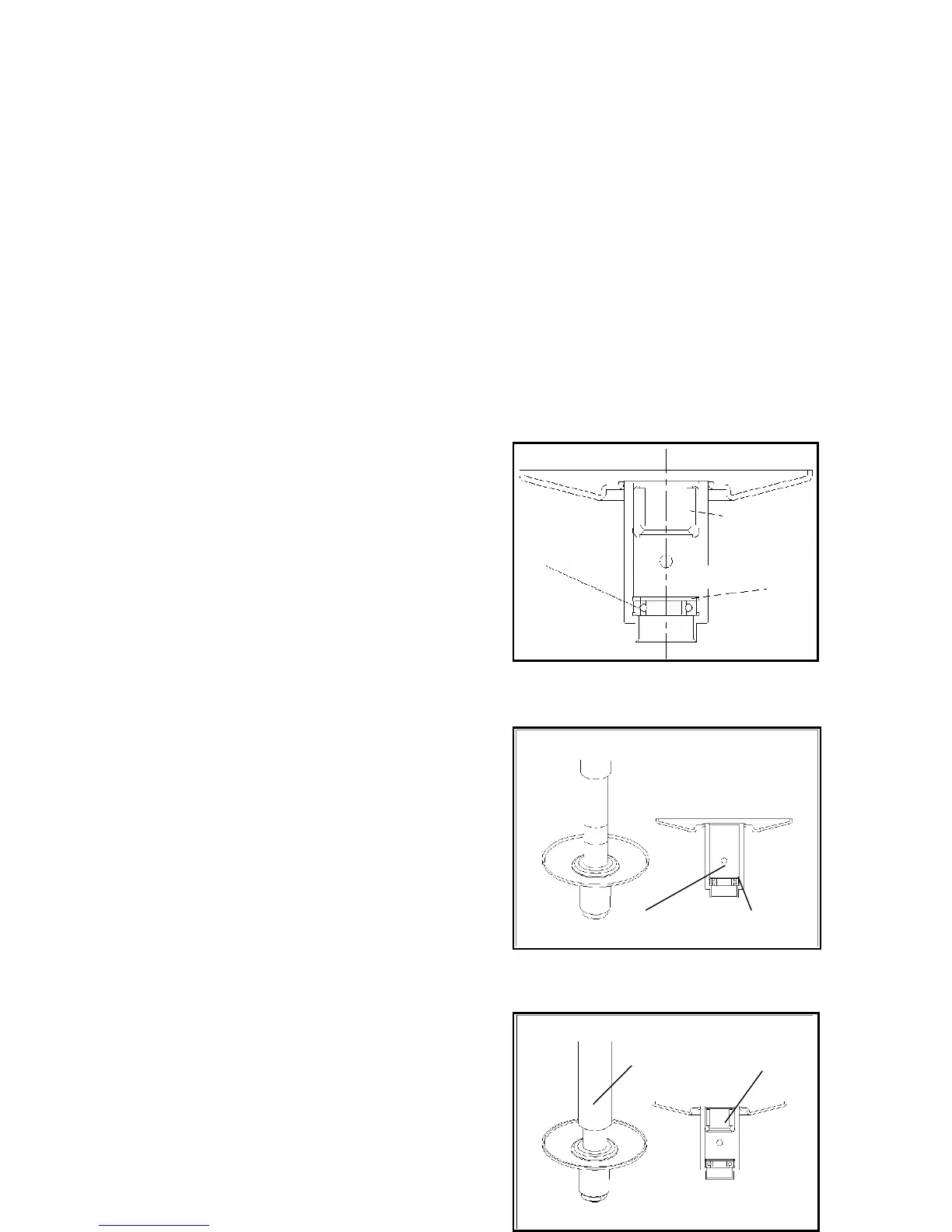

Take down the needle bearing from the right-half driven
wheel.
Dismantle the elastic check ring and the outer rolling bearing.
*Attention:
The dismantled nearing can not be used again.
Stipulated grease Ball bearing
Rolling bearing
Elastic check ring
