1.7.3 Installation
Install magneto stator on engine case.
Connect wire terminals of magneto.
Clean the tapered part of the crankshaft and flywheel.
Install the retaining key of flywheel in the key groove on the
crankshaft and confirm.
Align the flywheel groove with the retaining key of the shaft.
*Attention
Confirm no bolts are on the inner face of the flywheel because
of magnetism of the inner face.
Fix the flywheel with a multiple use fixing spanner and screw
the fixing nut.
Torque value ：9.0 N·m
Install the left body guard.

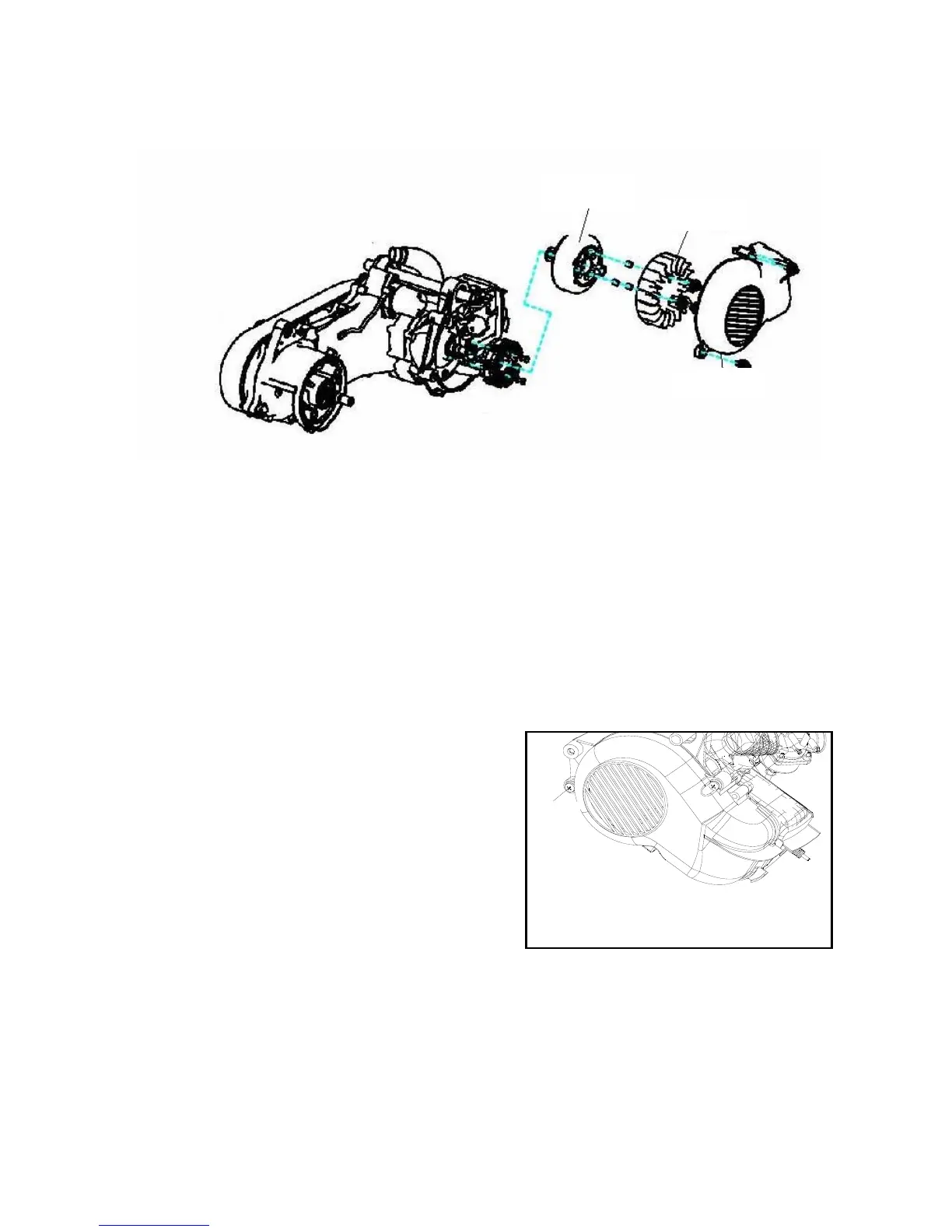

螺钉
Bolt
Flywheel
Cooling fan
Fan cover
