Genesis resource pro - Full LCD Display; Display Elements and Symbols

10
NDL
TAT
STOP
BT
LOG
D
E
C
O
D
E
C
O
D
E
C
O
D
E
C
O
AM
PM
MAX
FT
M

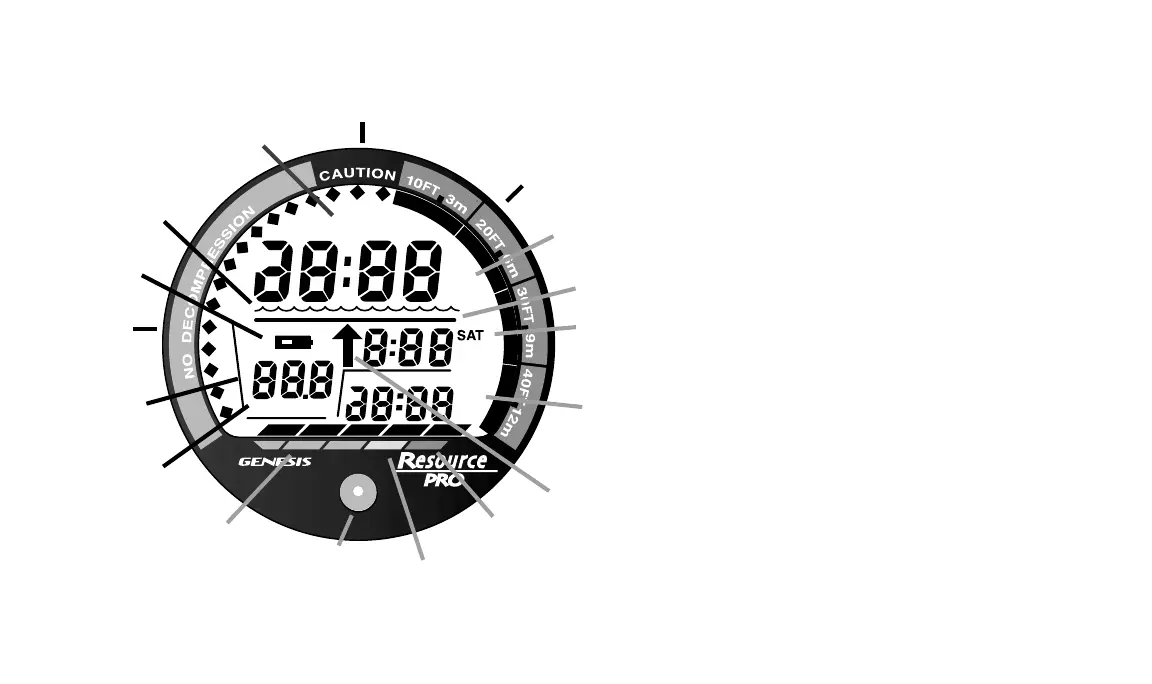

FULL LCD DISPLAY
1a
1b
1a. Nitrogen Bar Graph - (Green - No Deco)
1b. Nitrogen Bar Graph - (Yellow - No Deco Caution)
1c. Nitrogen Bar Graph - (Red - Deco)
2a. Ascent Rate Indicator - (Green - normal)
2b. Ascent Rate Indicator - (Yellow - caution)
2c. Ascent Rate Indicator - (Red - 'Too Fast')
3. Symbol - Current Depth or Max Depth
4. Symbol - Dive Profile - Plan or Dive Mode
5. Symbol - Low Battery
6. Symbol - Wave - Surface Mode
7. Symbol - Log Mode
8. Symbol - Time - BT/TAT/NDL
9. Symbol - Deco Stop Bar
10. Symbol - DeSAT Time or Deco STOP Time
11. Symbol - AM or PM for 12 hour time
12. Symbol - UP Arrow (ascend)
13. Control Button
