INTUITIVE DISPLAYS
The Resource Pro uses Genesis Scuba's unique Dive Profile Diagram (Fig. 2a) and easy to under-
stand symbols, displaying information where you would expect it to be when looking at a log pro-
file.
When you enter Special Situations, such as Decompression and various Violation modes, an UP
Arrow symbol (Fig. 2b) will appear in the middle portion of the display as a warning that a con-
trolled ascent is required.
It is imperative that you understand the formats, ranges, and values of the information presented
by the Resource Pro's numeric and graphic displays to avoid any possible misunderstanding that
could result in error.
BAR GRAPHS
Two segmented bar graphs appear around the perimeter of the screen next to green, yellow, and
red color coded portions of the peripheral decal that denote normal, caution, and danger zones,
respectively.
When underwater, you can quickly focus on the bar graphs to make sure that they are in the
green and you are not getting too close to the no decompression limit or ascending too fast.

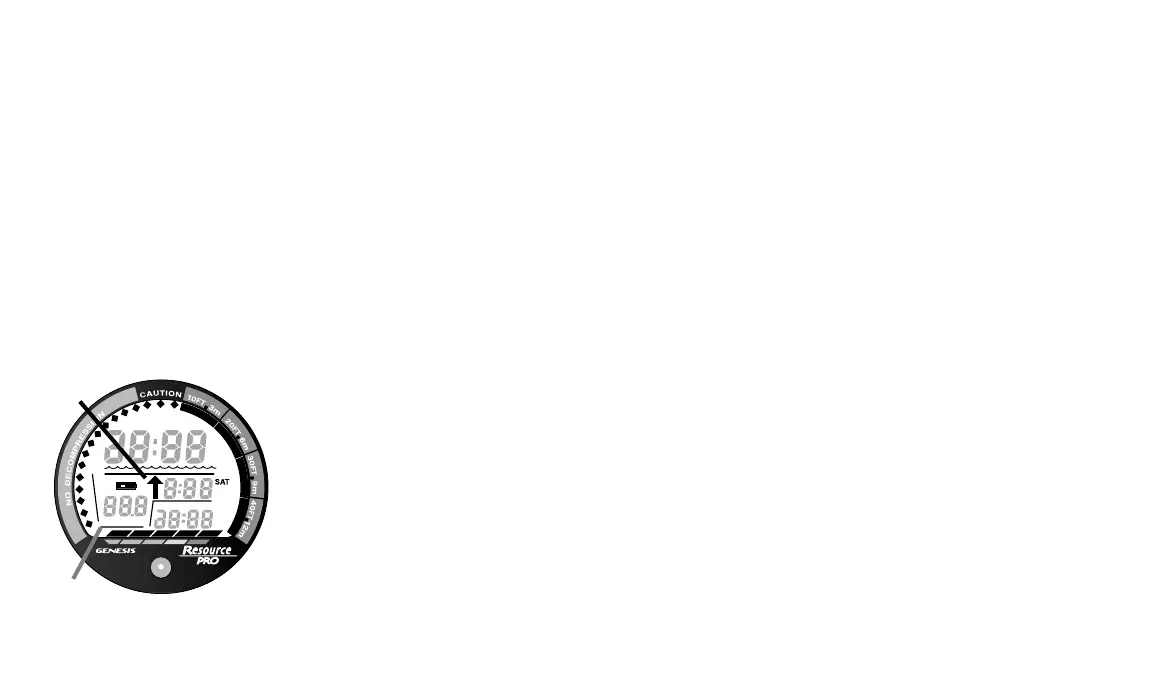

Fig. 2 - Symbols
a
b
To Next Page
