Genevac Rocket 4D - LCD Screen

Rocket 4D Evaporation System
User Manual
8 04-7848 Issue 2-4 August 2014

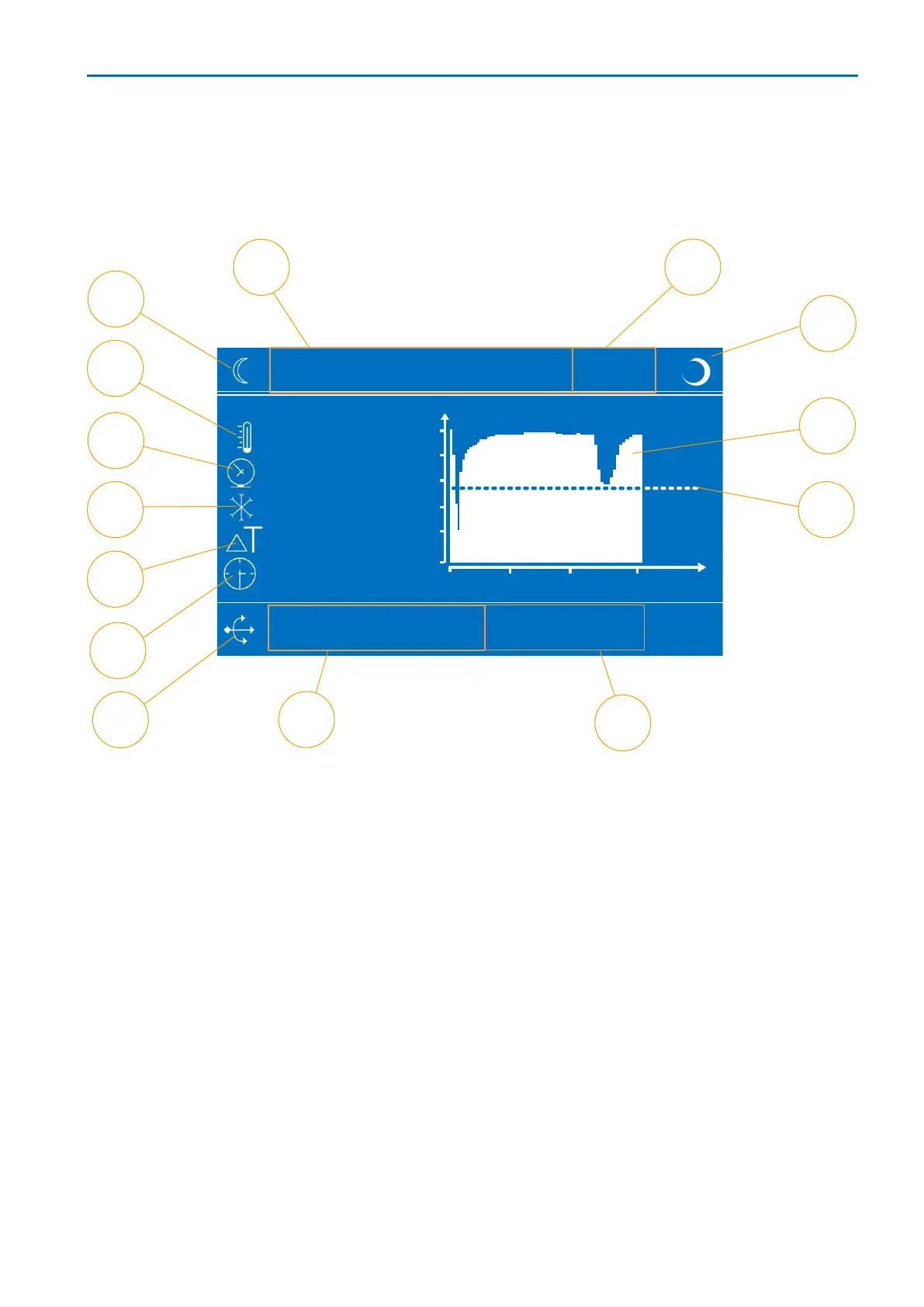

LCD screen
Graphical and numerical information relating to system status and evaporation progress is
shown during evaporation.
1. Selected method
2. Power save function enabled
3. Sample temperature
4. Inner (rotor) chamber pressure
5. Coolant temperature
6. Delta T (T )*
7. Elapsed time or time remaining
8. USB device connected
9. System status
10. Progression of feeding sequence
11. T trigger point
12. T graph
13. Rotor spinning
14. Current method stage
*For details , see System Optimisation, Delta T.
Single Solvent Feed
d (1 / 2)
rT
+38.8°C
33 mbar
-1.0 °C
+9.15 °C
#00:43.01
Feed Stage 1 (Feed 2/3)
0 time 1:00
8
6
4
2
0
5
6
7
8
3
4
1
2
13
12
9
11
14
10
