Fuses

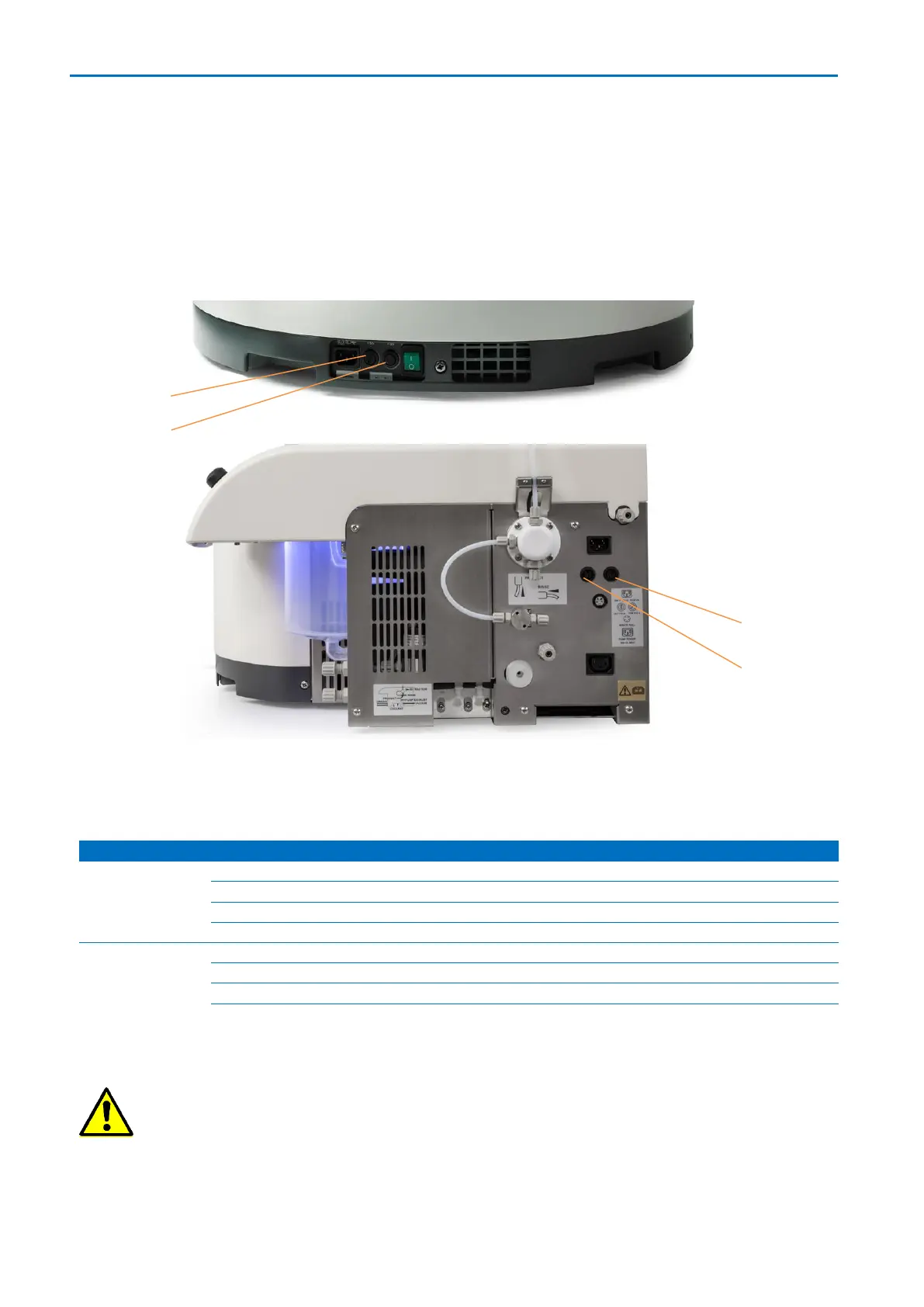

Mains live and neutral fuses are located next to the evaporator power switch and on the
service panel. Disconnect the mains cables to isolate the evaporator before removing
fuses.
To remove a fuse, turn the holder counter-clockwise using a flat blade screwdriver.
FS5
FS6
Service panel
FS7
FS8
Fuses must be replaced with the same type.
Mains supply
Ref
Rating (A)
Dimensions
Manufacturer’s description
Part number
230 V 50 Hz
FS5
6.3
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-6.3
04-3587
FS6
6.3
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-6.3
04-3587
FS7
10
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-10
04-3588
FS8
10
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-10
04-3588
120 V 60 Hz
100 V 60 Hz
100 V 50 Hz
FS5
16
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-16
04-3766
FS6
16
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-16
04-3766
FS7
16
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-16
04-3766
FS8
16
1¼” x ¼”
Antisurge (T) Ceramic - Siba 70-065-65-16
04-3766
Caution: Fuses should only be replaced by suitably trained personnel. If a fuse
blows repeatedly, contact Genevac service for assistance.
