8.4 Installation
The Target Mini Fixed Rugged Dome can be installed on the wall or ceiling.
You must use the supplied waterproof rubber set to waterproof the cable.
1. Paste the installation sticker where you want to install, and drill two
holes that are at a diagonal. To run the cables inside the wall or
ceiling, drill a larger opening as shown below.

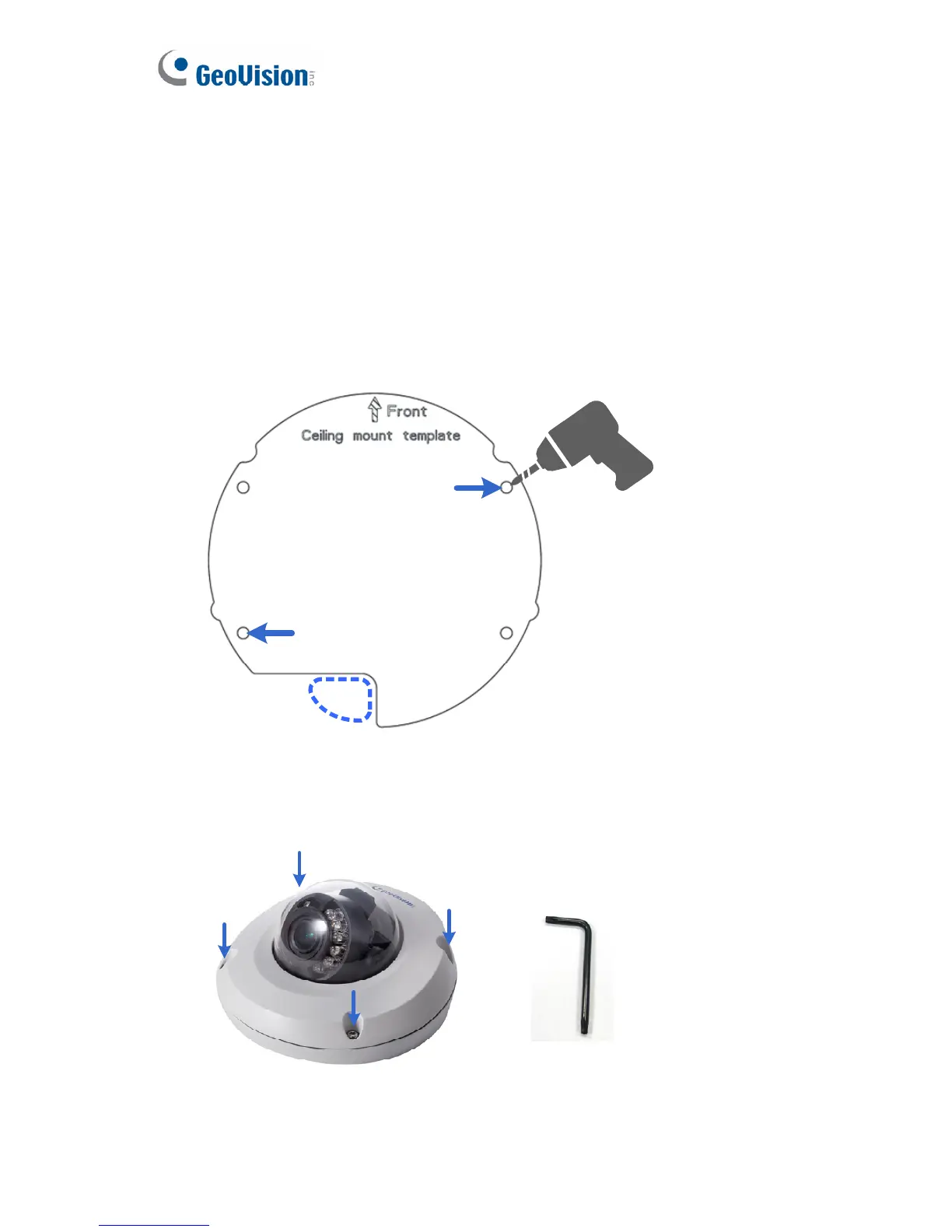

Figure 8-2
2. Insert the supplied screw anchors into the two drilled holes.
3. Open the camera’s housing cover using the supplied torx wrench.
Figure 8-3
84
