Bullet Camera
111
9
9.4.4 Installing the Sun-Shield Cover
After setting up the Bullet Camera, now you can install the sun-shield cover
to the camera.

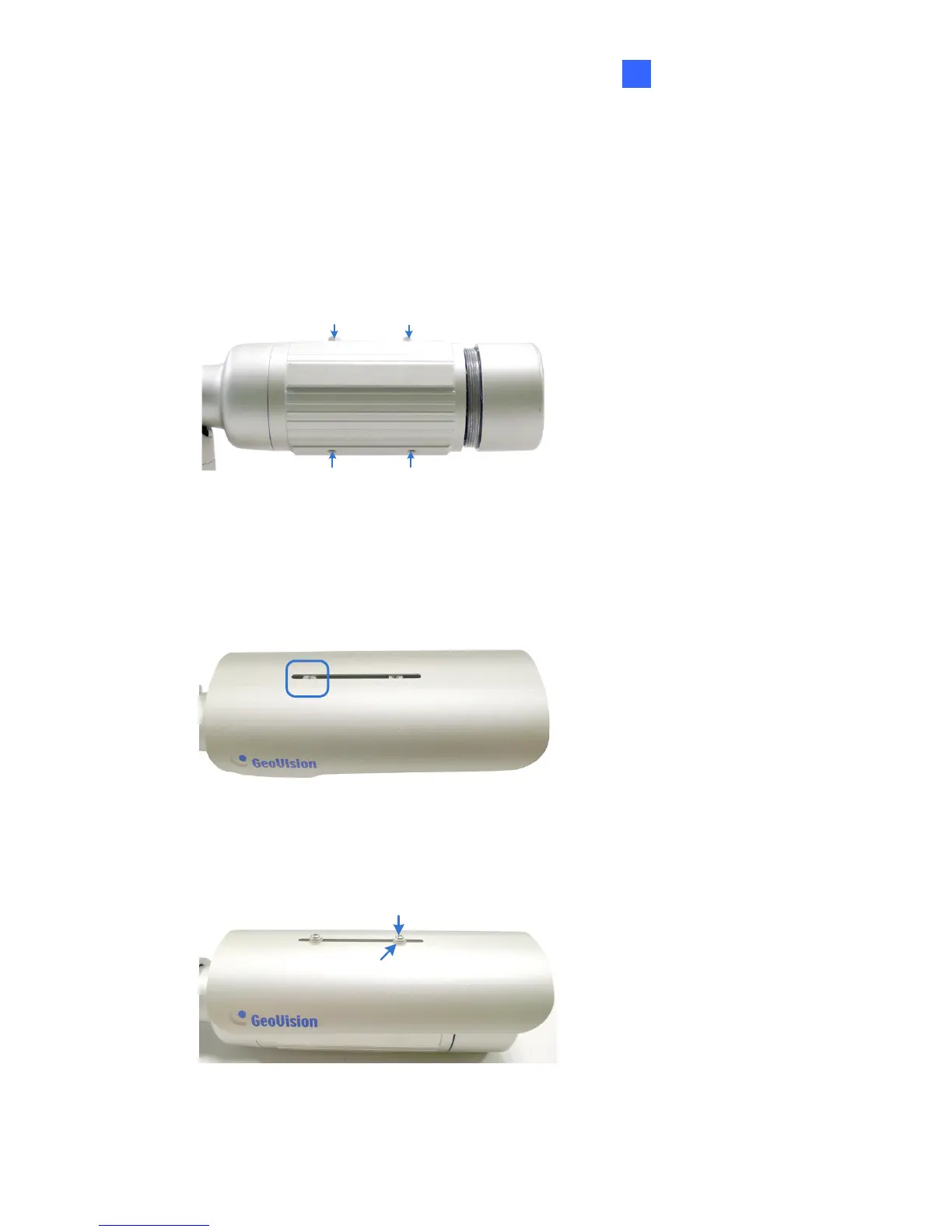

1. Fasten the hexagon screws either on top or below the camera.
Hexagon Screws
Figure 9-20
2. Put the sun-shield cover on top of hexagon screws. Make sure to aim
the rear hexagon screw at the edge of the sun-shield cover’s aperture
for optimal sun-shield performance.
Sun-Shield Cover
Figure 9-21
3. Fasten the Philips head screws with the plastic screw spacers.
Philips Head Screw
Plastic Screw Spacer
Figure 9-22
To Next Page
