Mini Fixed & Rugged Dome
6
6.3 Overview
6.3.1 GV-MFD120 / 130 / 220 / 320 / 520
1 2 43
5
6
7

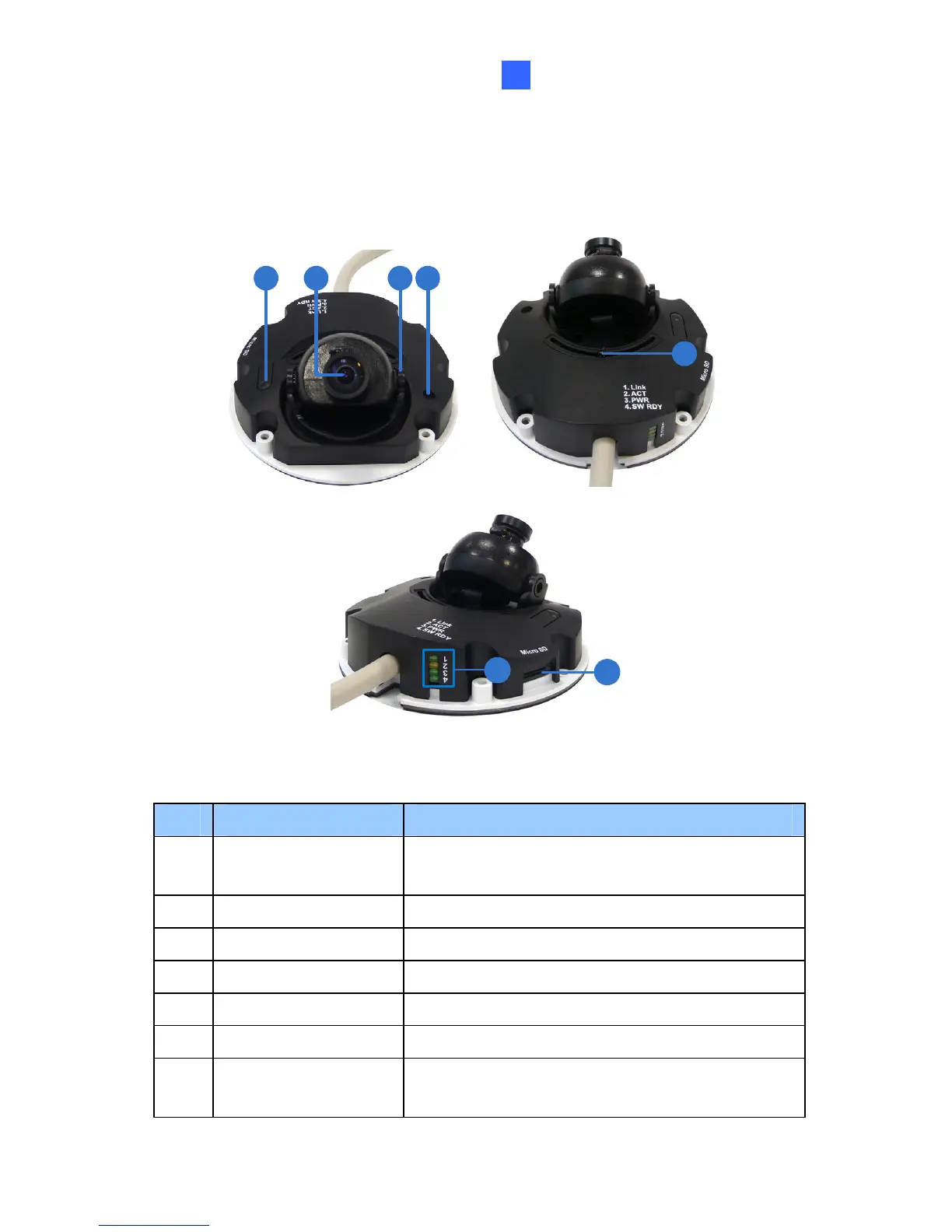

Figure 6-1
No. Name Description
1 Default Button
Resets the camera to factory default. See
23.3 Restoring to Factory Default Settings.
2 Lens Receives image inputs.
3 Tilt Screw Loosens the screw to adjust tilt angle.
4 Microphone Provides one-way audio.
5 Pan Screw Loosens the screw to pan.
6 LED Indicators See LED Indicators below.
7 Memory Card Slot Inserts a micro SD card (SD/SDHC, version
2.0 only, Class 10) to store recording data.
55
