12.3 Overview
21 3 4 5 6
87
9
10

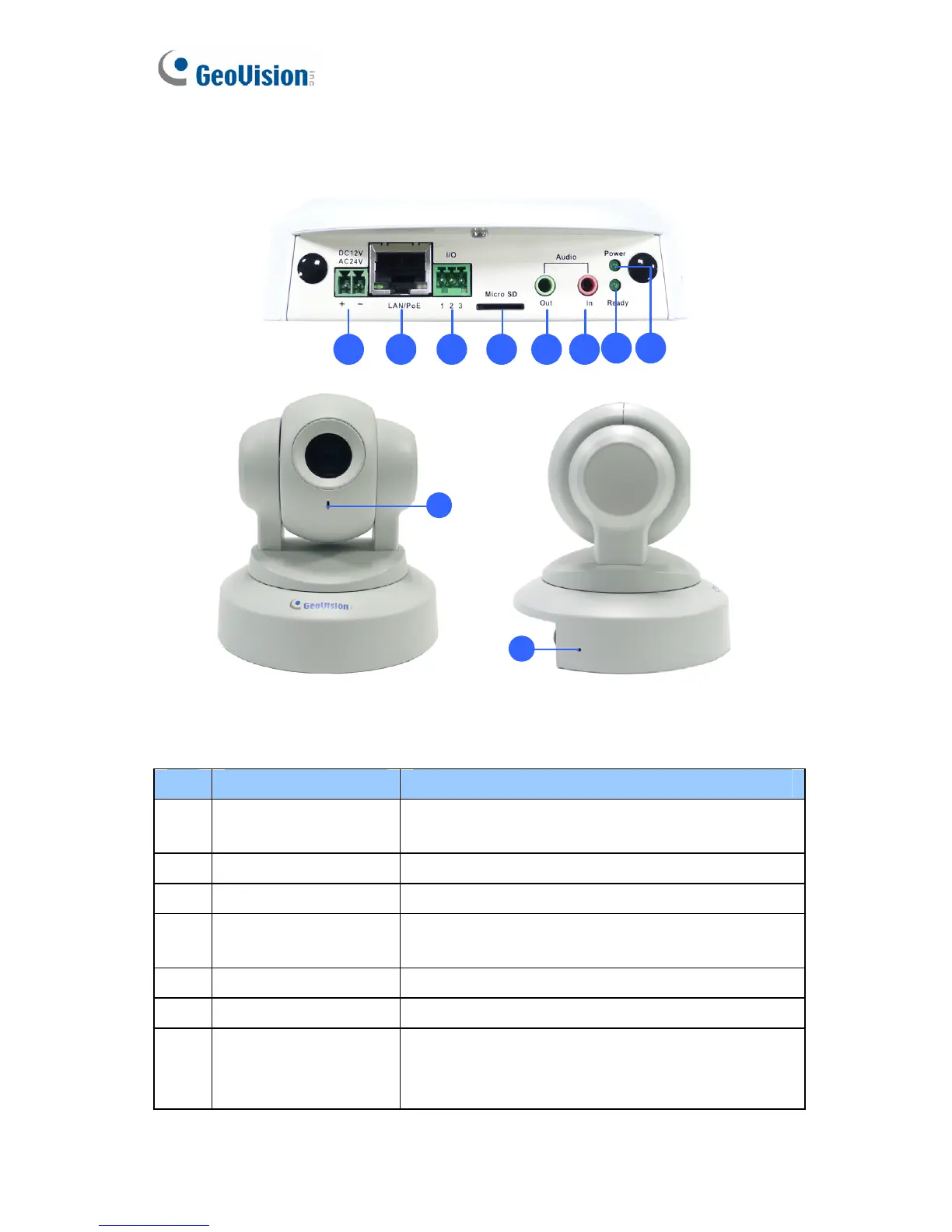

Figure 12-1
No. Name Description
1
DC 12V / AC 24V
Terminal Block
Connects to a DV 12V or AC 24V Power
Adapter.
2
LAN/PoE Connects to a 10/100 Ethernet or PoE.
3
I/O Terminal Block For details, see 12.7 I/O Terminal Block.
4
Memory Card Slot
Inserts a micro SD card (SD/SDHC, version
2.0 only, Class 10) to store recording data.
5
Audio Out Connects a speaker for audio output.
6
Audio In Connects a microphone for audio input.
7
Status LED
Turns green when the system operates
normally and turns off when system error
occurs.
140
To Next Page
