GeoVision GV-MFD320 User Manual

Mini Fixed & Rugged Dome
6
6.3.2 GV-MFD1501 Series / 2401 Series / 2501 Series /
3401 Series / 5301 Series
1
2
3
4
5
6
7
8
9

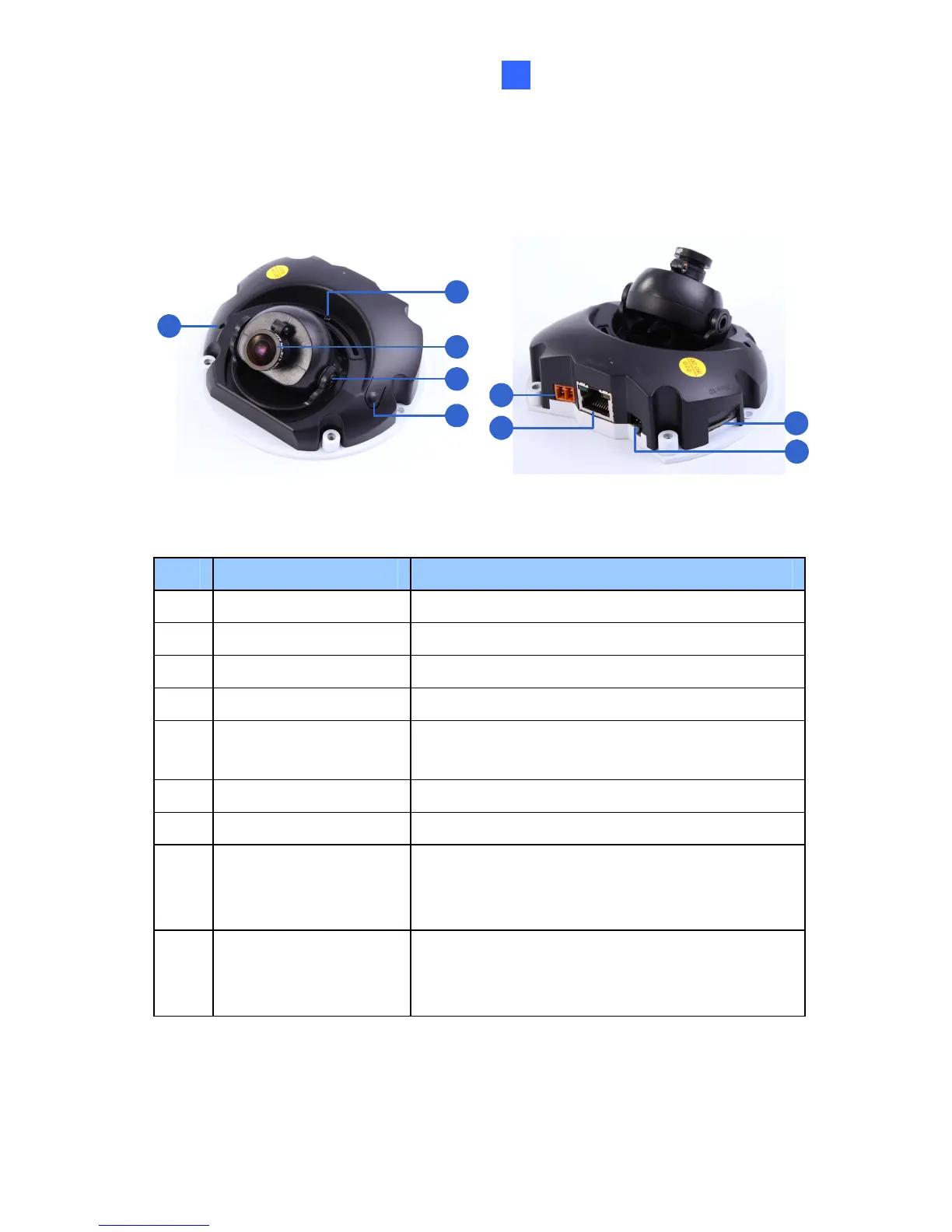

Figure 6-2
No. Name Description
1 Microphone Receives sound.
2 Pan Screw Loosens the screw to pan.
3 Lens Receives image inputs.
4 Tilt Screw Loosens the screw to adjust tilt angle.
5 Default Button
Resets the camera to factory default. See
23.3 Restoring to Factory Default Settings.
6 DC 5V Power Port Connects to power.
7 LAN / PoE Connects to a 10/100 Ethernet or PoE.
8 Memory Card Slot
Inserts a micro SD card (SD/SDHC,
version 2.0 only, Class 10) to store
recording data.
9 USB and Audio Out
Connects to a GV-WiFi Adapter/USB hard
drive and a speaker through the supplied Y
cable.
57
