Fixed IP Dome
16
16.3 Overview
1
2
3
4
5
6 7 8 9
10
11 12 13
14 15

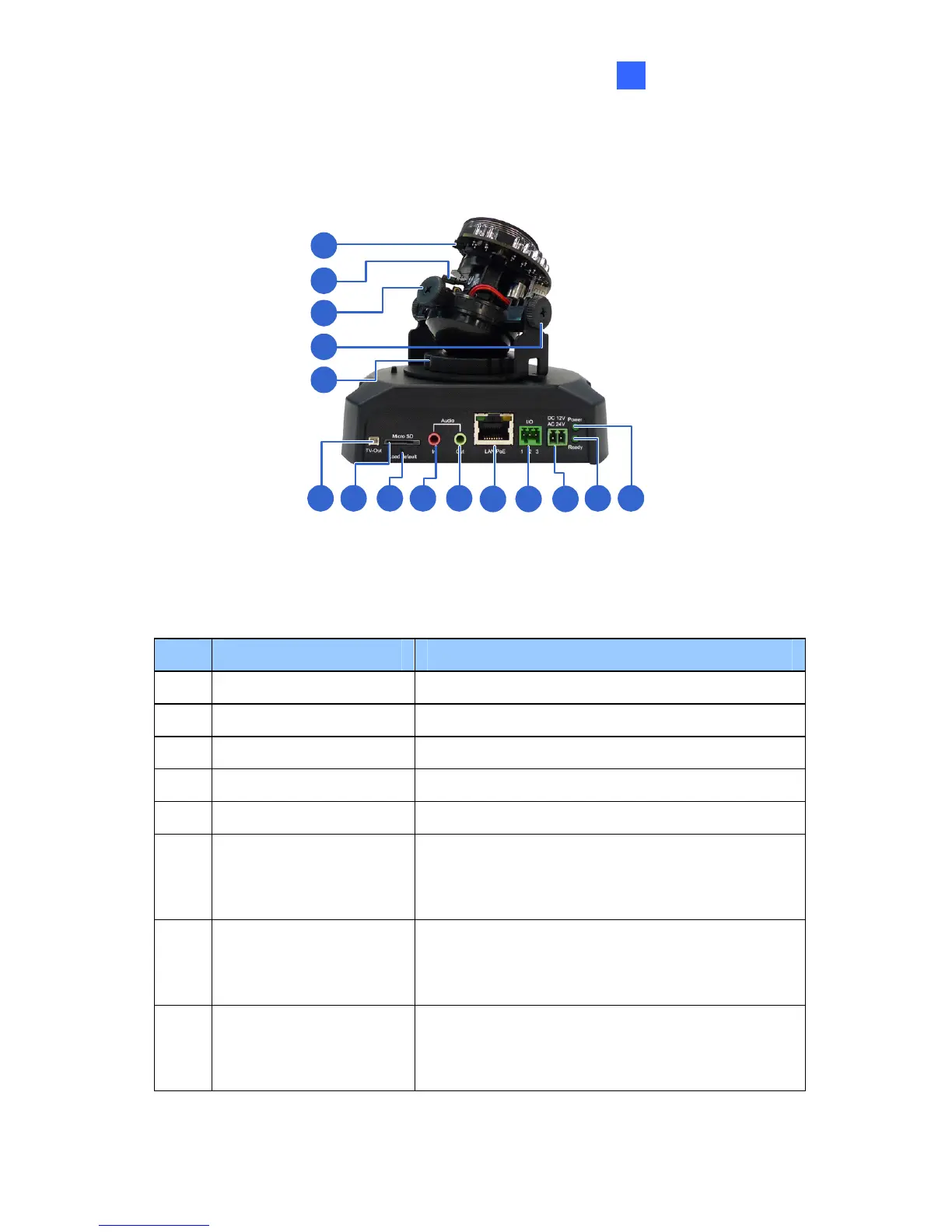

Figure 16-1
No. Name Description
1 Focus Screw Adjusts the focus of the camera.
2 Zoom Screw Adjusts the zoom of the camera.
3 Rotational Screw Loosens to adjust the camera angle.
4 Tilt Screw Loosens the screw to tilt the camera.
5 Pan Disc Loosens to pan the camera.
6 Video Out
Connects to a portable monitor for setting
the focus and angle of Fixed IP Dome
during initial installation.
7 Memory Card Slot
Inserts a micro SD card (SD/SDHC,
version 2.0, Class 10) to store recording
data.
8 Default Button
Resets to factory default. For details, see
20.3. Restoring to Factory Default
Settings.
223
