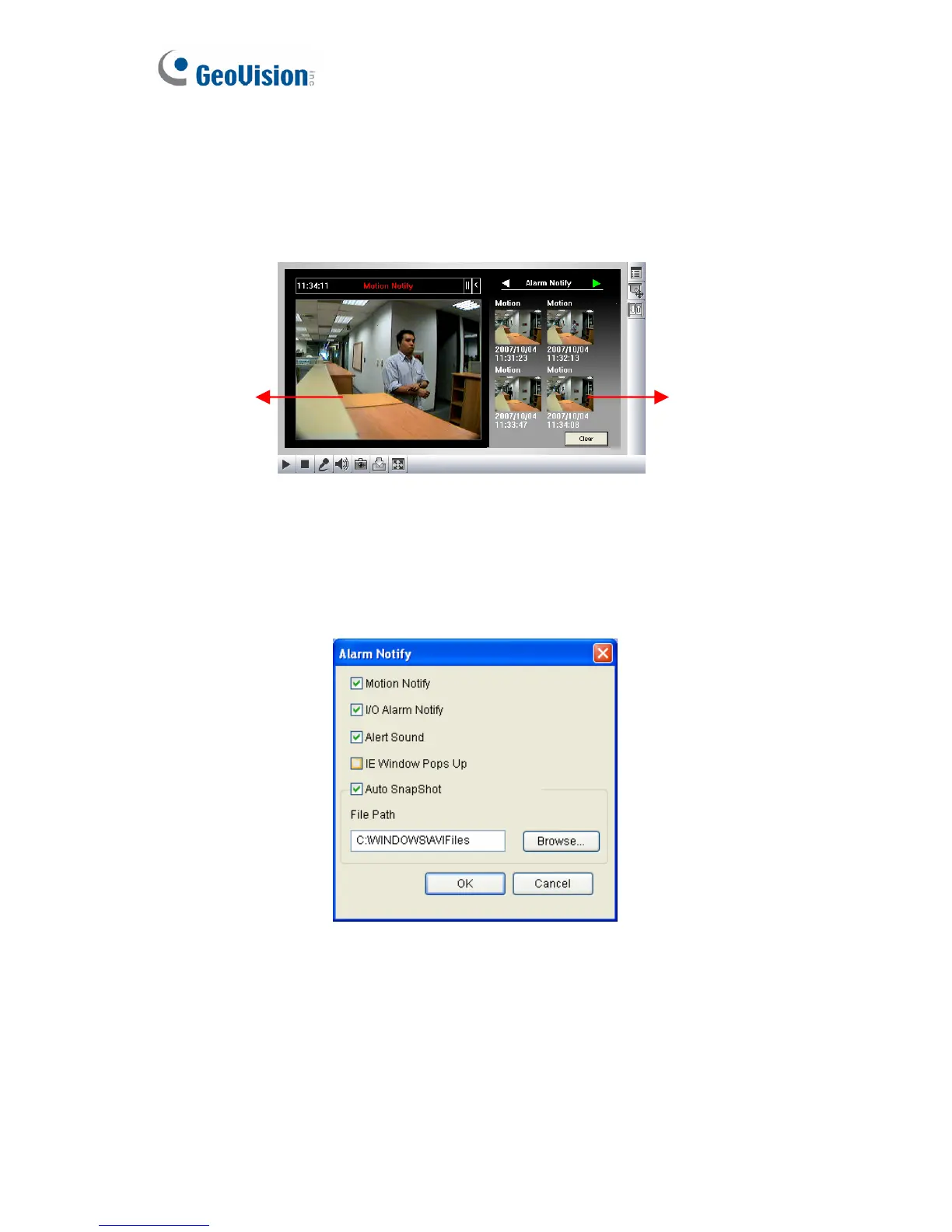

20.2.6 Alarm Notification

After input triggers and motion detection, you can be alerted by a pop-up

live video and view up to four captured images.

Pop-up live

video

Captured

images video

Figure 20-9

To configure this function, click the

Show System Menu button (No. 8,

Figure 20-3), and select

Alarm Notify. This dialog box appears.

Figure 20-10

 Motion Notify: Once motion is detected, the captured images are

displayed on the control panel of the Live View window.

288
