21.1.2 Motion Detection

Note for firmware V1.07 or later and the Target Series (except GV-

PTZ010D), motion detection is disabled by default; for GV-PTZ010D,

motion detection is enabled by default.

Motion detection is used to generate an alarm whenever movement occurs

in the video image. You can configure up to 8 areas with different

sensitivity values for motion detection. Set up at least one area to enable

this function.

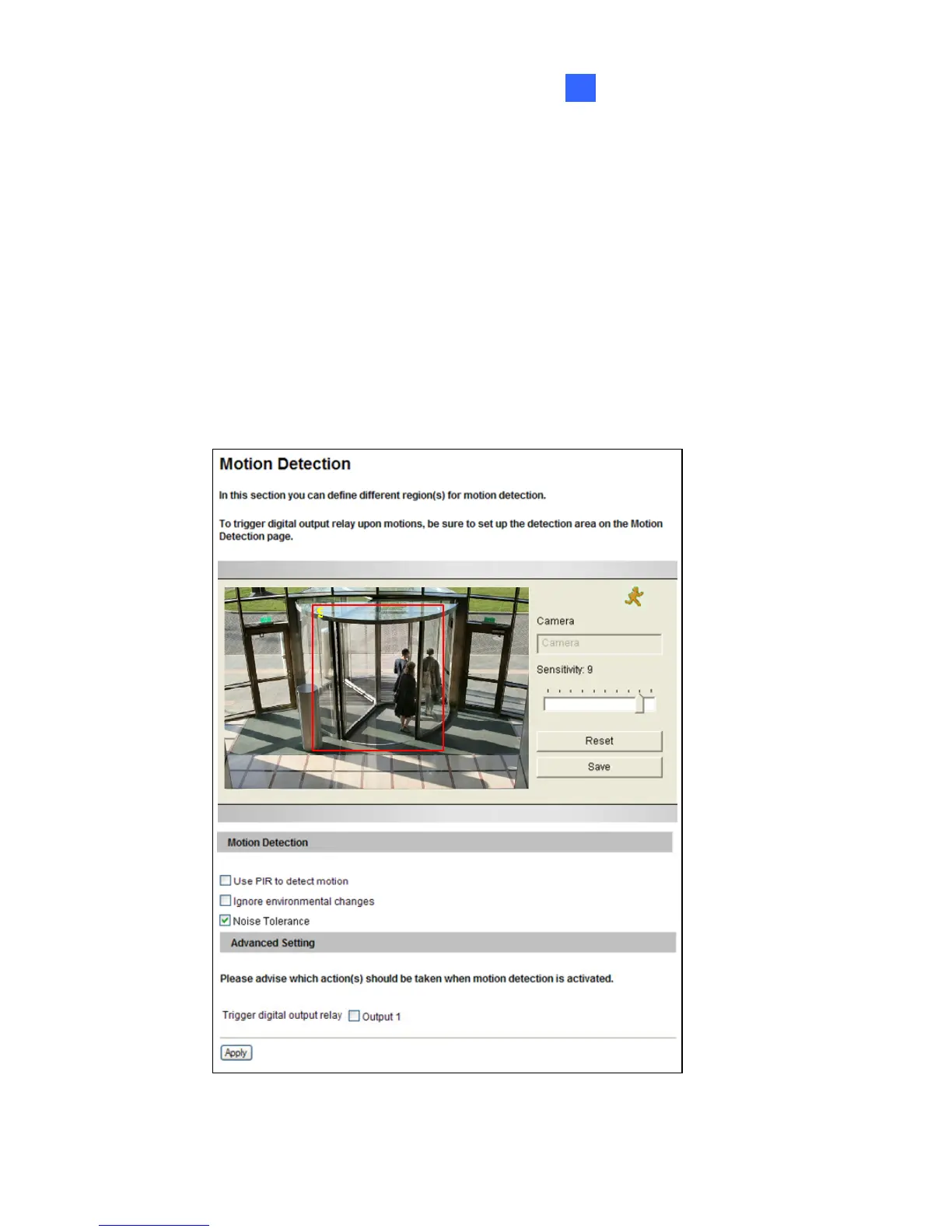

Figure 21-4
