LAN Connector

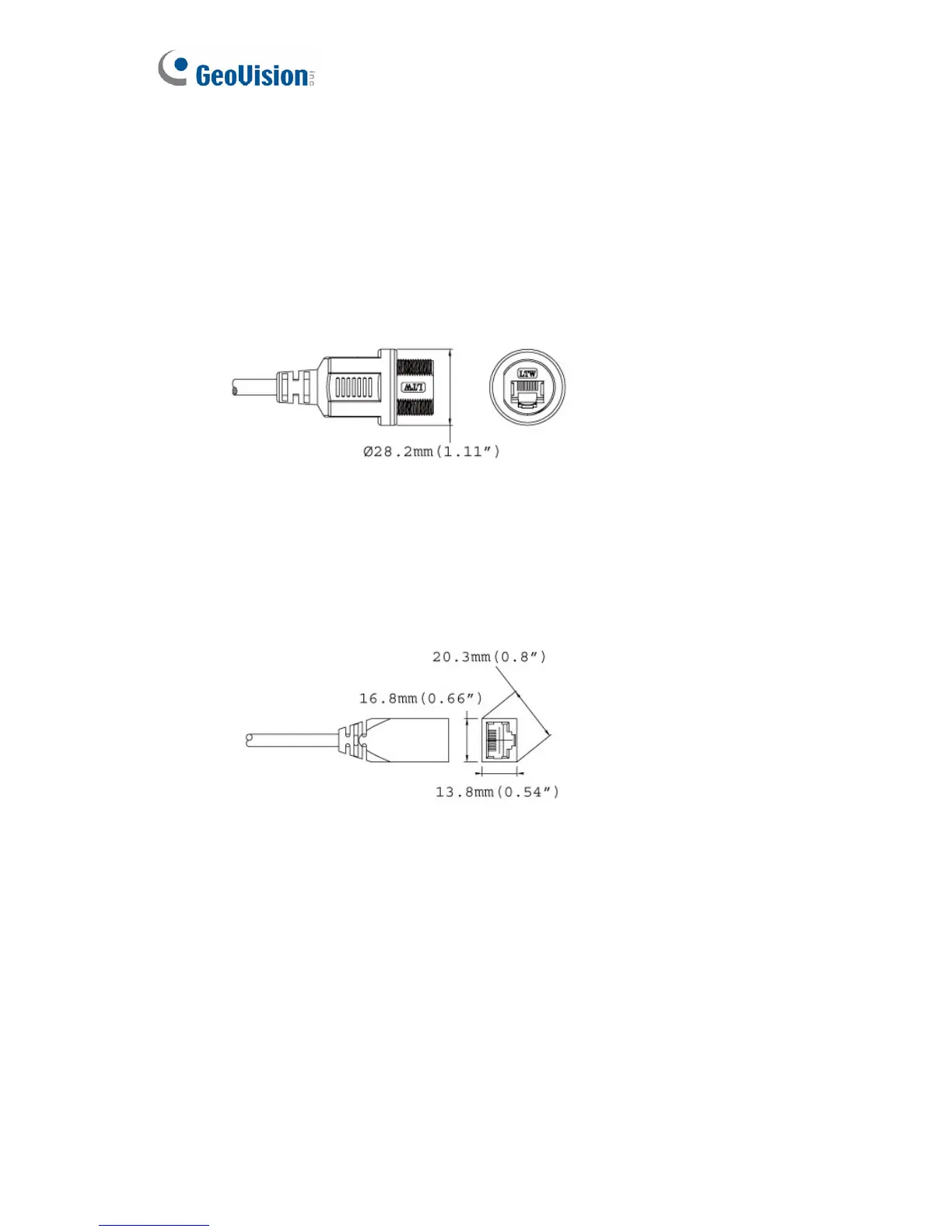

The Ultra Bullet Camera provides two connector types. Select an option

based on your installation environment.

• Option 1 (Waterproof)

To waterproof the cable, install the supplied cable connector. See

10.4.1 Waterproofing the Cable.

• Option 2 (Smaller and non-waterproof)

118
