Advanced Applications

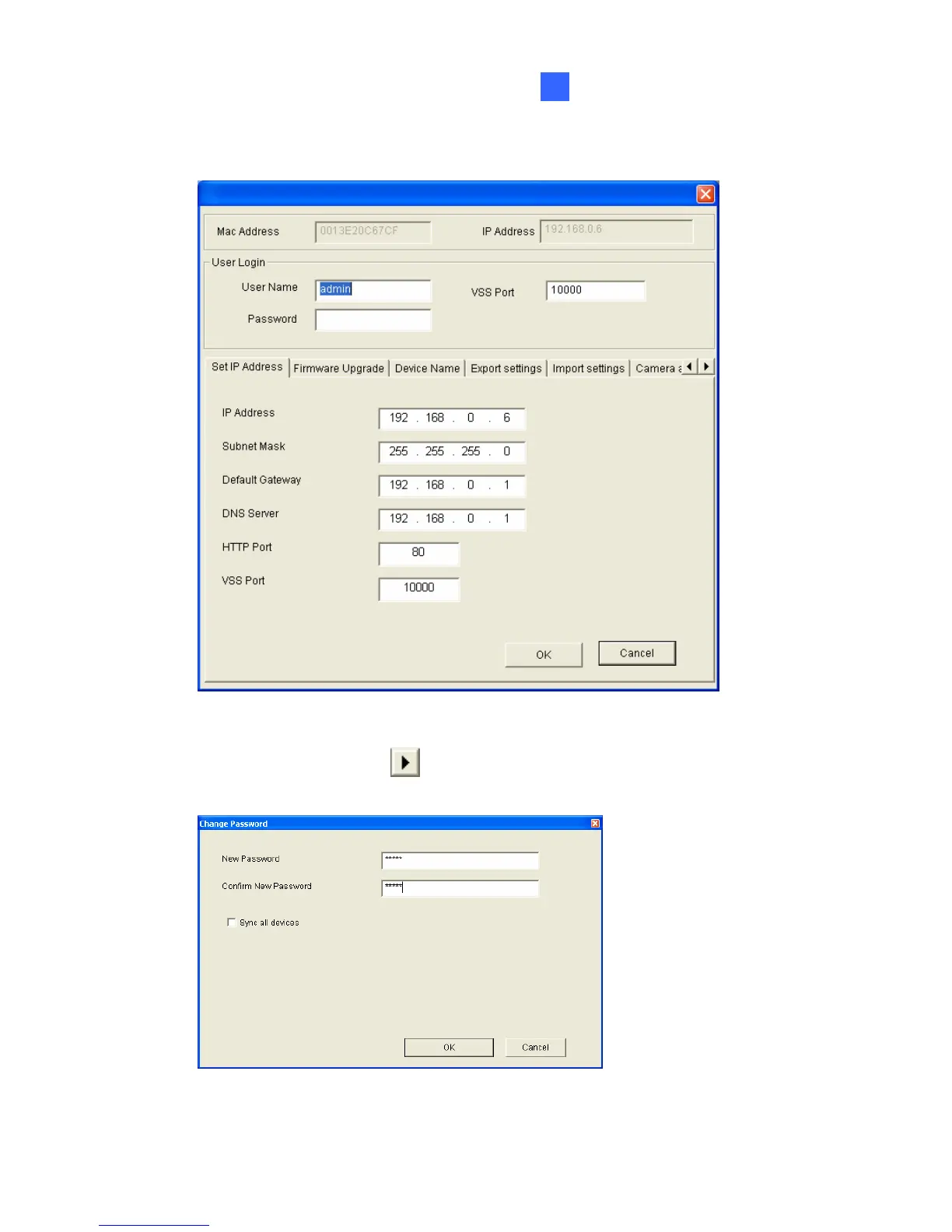

2. Double-click one camera in the list. This window appears.

Figure 23-27

3. Type Password, click , select Other Settings and then select

Change Password. This dialog box appears.

Figure 23-28

415
