4-18
Expanding Your Computer

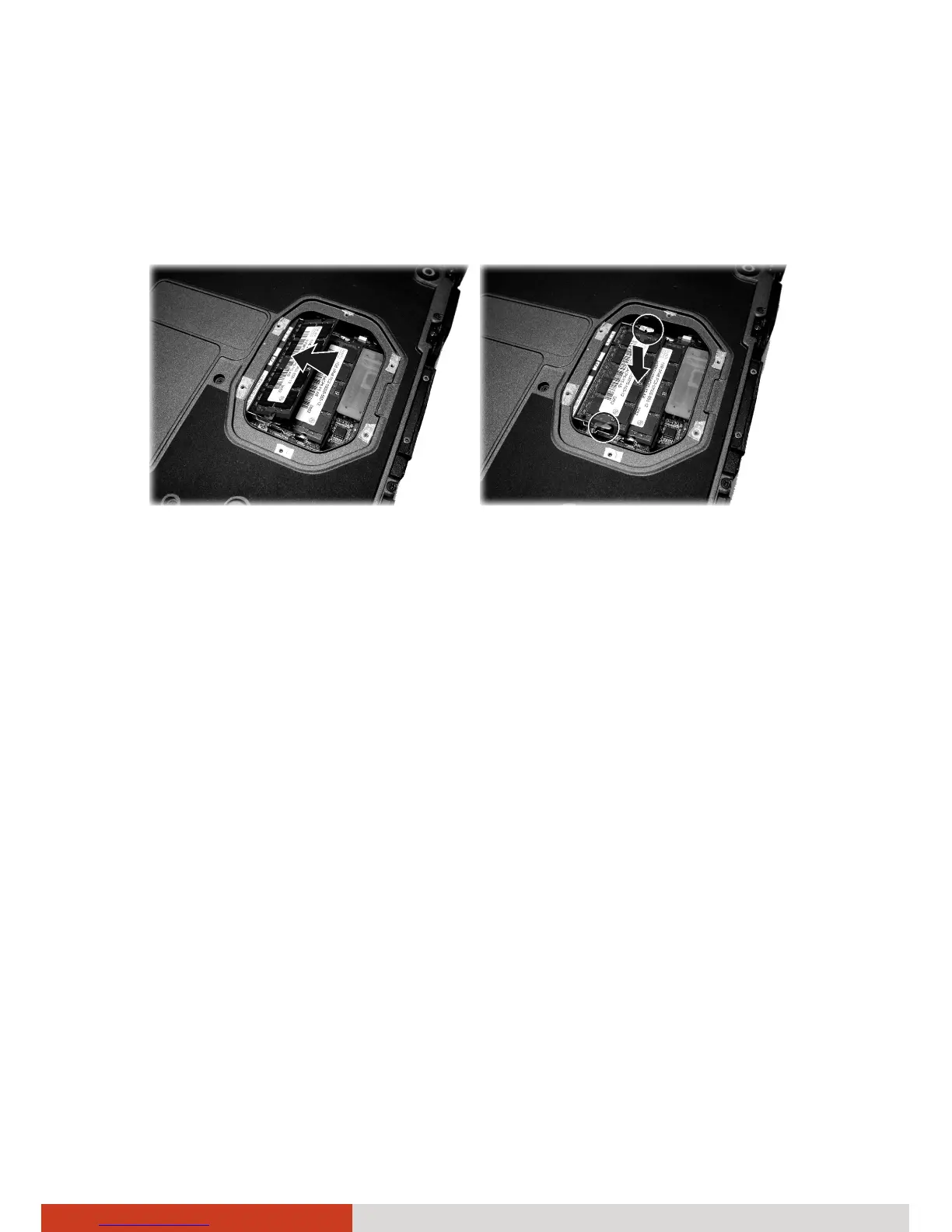

4. To install the RAM module, match the module's notched part with the
socket's projected part and firmly insert the module into the socket at a
20-degree angle (n).
Then push down until the retaining clips lock the
module into position (o).
CAUTION: If the RAM module is difficult to insert or difficult to push down,
do not force it. Check once more to ensure that the module is positioned
correctly.
5. Close the compartment cover and secure with six screws.
n
o
