Getnet GR-724W User Manual

22
2-3 Using ‘Quick Setup’
This router provides a ‘Quick Setup’ procedure, which will help you to
complete all required settings you need to access the Internet in very short
time. Please follow the following instructions to complete the ‘Quick
Setup’:

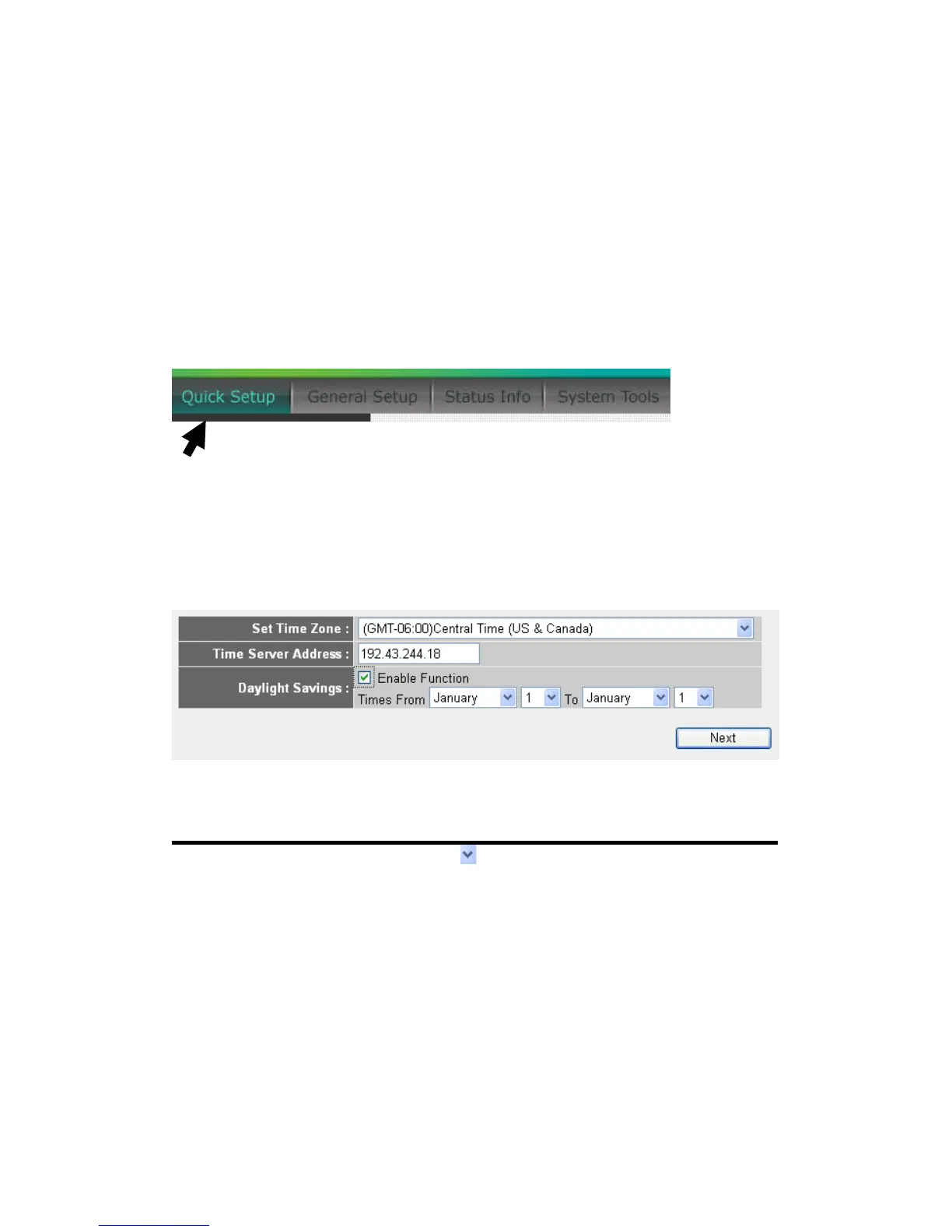

Please go to QuickSetup menu by clicking ‘QuickSetup’ button.
And the following message will be displayed:
1. Set Time Zone
Here are descriptions of every setup items:
Set Time Please press
button, a drop-down list
Zone (1): will be shown, and you can choose a time zone of
the location you live.
Time Server Input the IP address / host name of time server
Address (2): here
Daylight If the country you live uses daylight saving,
Savings(3): please check ‘Enable Function’ box, and choose the
duration of daylight saving.
1
2
3
4
HERE!

Getnet GR-724W Specifications

General

VPN support	IPSec/PPTP
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11n:14±1.5dBm 11g:14±1.5dBm 11b:18±1.5dBm 300Mbps OFDM, 10% PER, ‐ 65±2dBm 54Mbps OFDM, 10% PER, ‐ 73±2dBm 11Mbps CCK, 8% PER, ‐ 86±2dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	-
WLAN data transfer rate (max)	300 Mbit/s
Interface	WAN, LAN, WiFi
Input current	0.5 A
Input voltage	12 V
Number of users	253 user(s)
Dimensions (WxDxH)	163 x 112 x 30 mm
USB ports quantity	0
Supported protocols	WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond
Compatible operating systems	Windows Vista/7
NAT functionality	NAT/NAPT IP Sharing
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	4
Flash memory	4 MB
Certification	CE, FCC
Internal memory	16 MB
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black

Weight and Dimensions

Weight	- g
