Getnet GR-724W User Manual

44

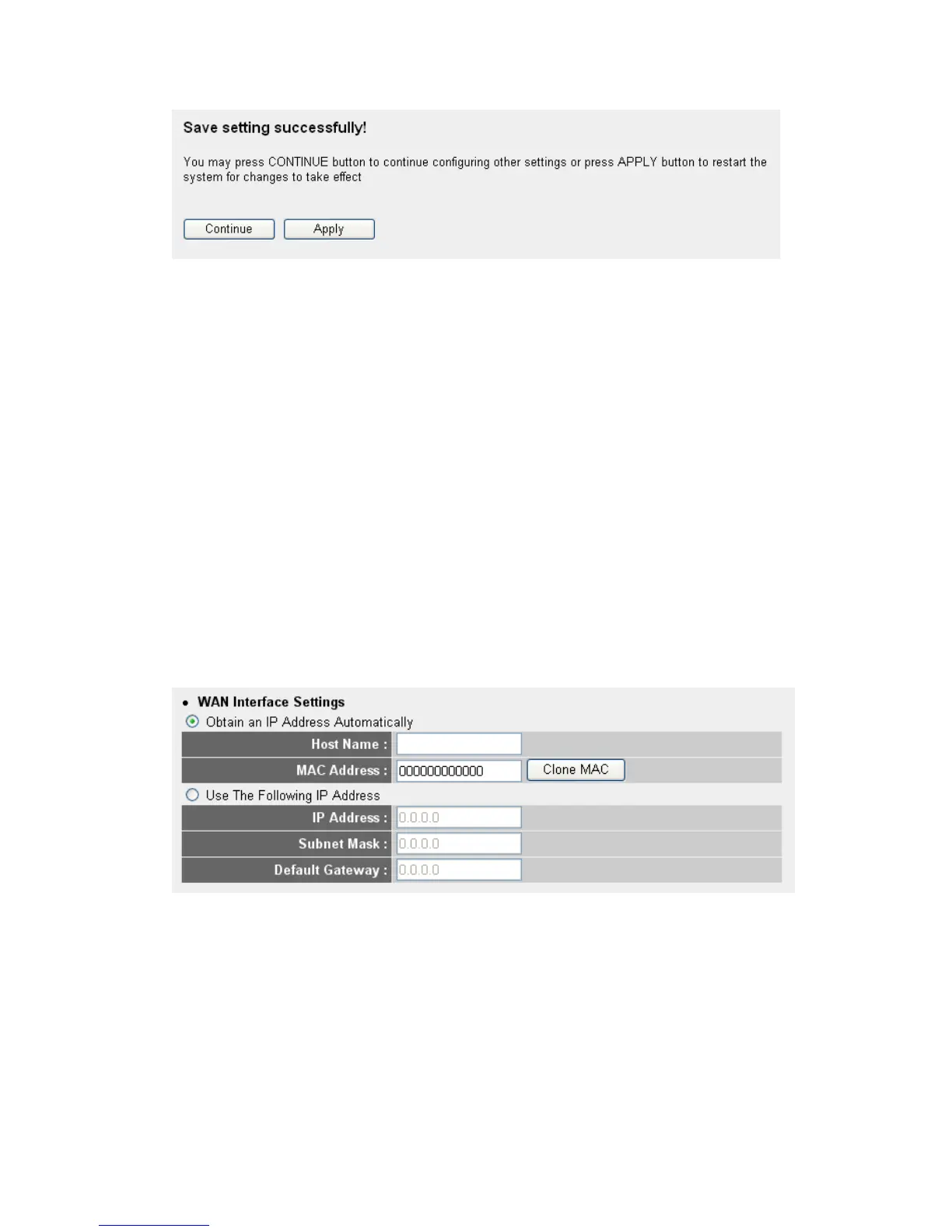

Please click ‘Continue’ to back to previous setup menu; to continue on
other setup procedures, or click ‘Apply’ to reboot the router so the
settings will take effect (Please wait for about 30 seconds while router is
rebooting).
If you want to reset all settings in this page back to previously-saved
value, please click ‘Cancel’ button.
2-5-4 Setup procedure for ‘PPTP’:
PPTP requires two kinds of setting: WAN interface setting (setup IP
address) and PPTP setting (PPTP user name and password). Here we start
from WAN interface setting:
Select the type of how you obtain IP address from your service provider
here. You can choose ‘Obtain an IP address automatically’ (equal to
DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the
following IP address’ (i.e. static IP address)
WAN interface settings must be correctly set, or the Internet connection
will fail even those settings of PPTP settings are correct. Please contact

Getnet GR-724W Specifications

General

VPN support	IPSec/PPTP
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11n:14±1.5dBm 11g:14±1.5dBm 11b:18±1.5dBm 300Mbps OFDM, 10% PER, ‐ 65±2dBm 54Mbps OFDM, 10% PER, ‐ 73±2dBm 11Mbps CCK, 8% PER, ‐ 86±2dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	-
WLAN data transfer rate (max)	300 Mbit/s
Interface	WAN, LAN, WiFi
Input current	0.5 A
Input voltage	12 V
Number of users	253 user(s)
Dimensions (WxDxH)	163 x 112 x 30 mm
USB ports quantity	0
Supported protocols	WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond
Compatible operating systems	Windows Vista/7
NAT functionality	NAT/NAPT IP Sharing
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	4
Flash memory	4 MB
Certification	CE, FCC
Internal memory	16 MB
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black

Weight and Dimensions

Weight	- g
