Getnet GR-724W User Manual

92
Delete All (11): Delete all mappings existed in virtual server table.
Reset (12): Unselect all mappings.

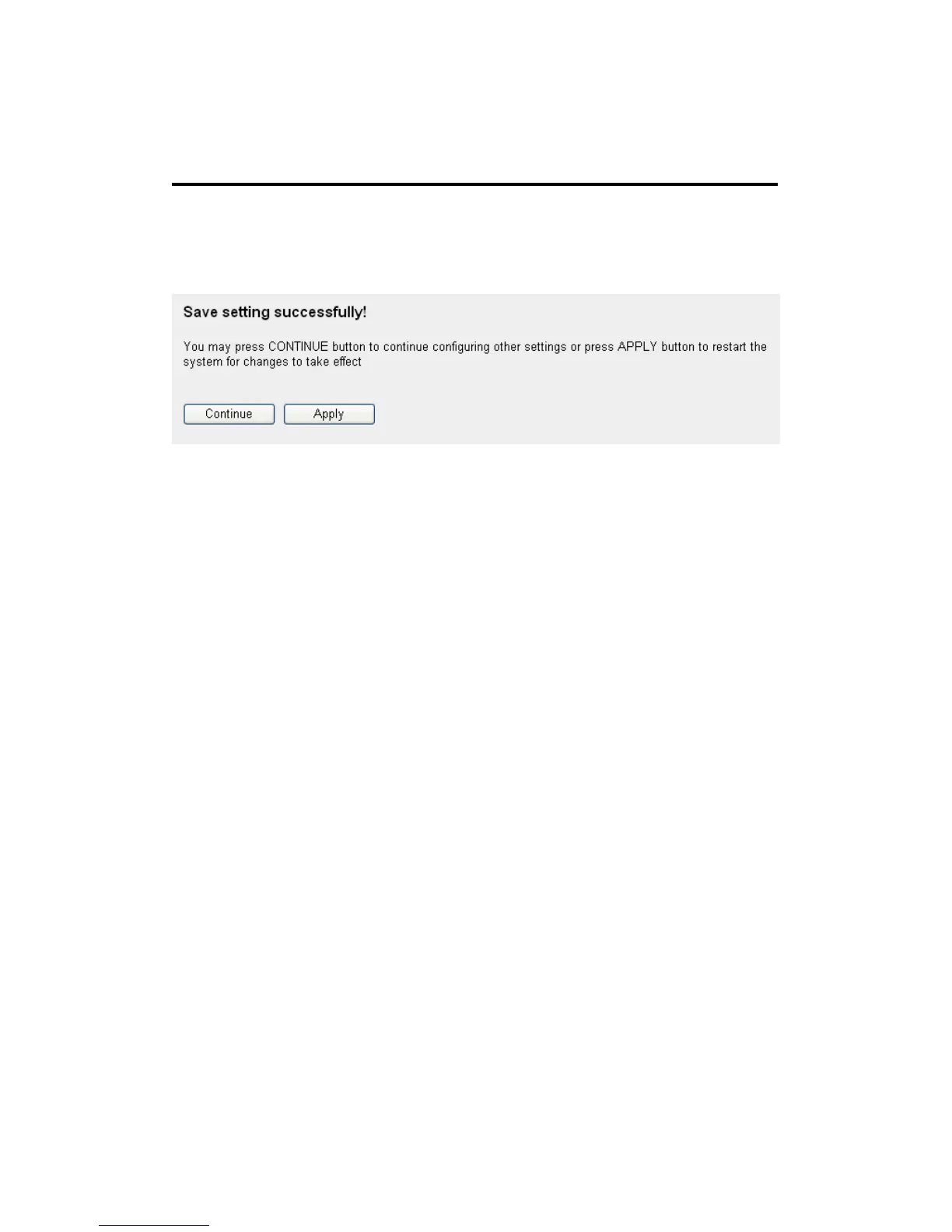

After you finish with all settings, please click ‘Apply’ (13) button and the
following message will be displayed on your web browser:
Please click ‘Continue’ to back to previous setup menu; to continue on
other setup procedures, or click ‘Apply’ to reboot the router so the
settings will take effect (Please wait for about 30 seconds while router is
rebooting).
If you want to reset all settings in this page back to previously-saved
value, please click ‘Cancel’ button.
3-2-3 Virtual Server
This function allows you to redirect a port on Internet IP address (on
WAN port) to a specified port of an IP address on local network, so you
can setup an Internet service on the computer on local network, without
exposing it on Internet directly. You can also build many sets of port
redirection, to provide many different Internet services on different local
computers via a single Internet IP address.
Please click ‘NAT’ menu on the left of web management interface, then
click ‘Virtual Server’, and the following message will be displayed on
your web browser:

Getnet GR-724W Specifications

General

VPN support	IPSec/PPTP
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11n:14±1.5dBm 11g:14±1.5dBm 11b:18±1.5dBm 300Mbps OFDM, 10% PER, ‐ 65±2dBm 54Mbps OFDM, 10% PER, ‐ 73±2dBm 11Mbps CCK, 8% PER, ‐ 86±2dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	-
WLAN data transfer rate (max)	300 Mbit/s
Interface	WAN, LAN, WiFi
Input current	0.5 A
Input voltage	12 V
Number of users	253 user(s)
Dimensions (WxDxH)	163 x 112 x 30 mm
USB ports quantity	0
Supported protocols	WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond
Compatible operating systems	Windows Vista/7
NAT functionality	NAT/NAPT IP Sharing
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	4
Flash memory	4 MB
Certification	CE, FCC
Internal memory	16 MB
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black

Weight and Dimensions

Weight	- g
