Getnet GR-724W User Manual

48
If you want to reset all settings in this page back to previously-saved
value, please click ‘Cancel’ button.

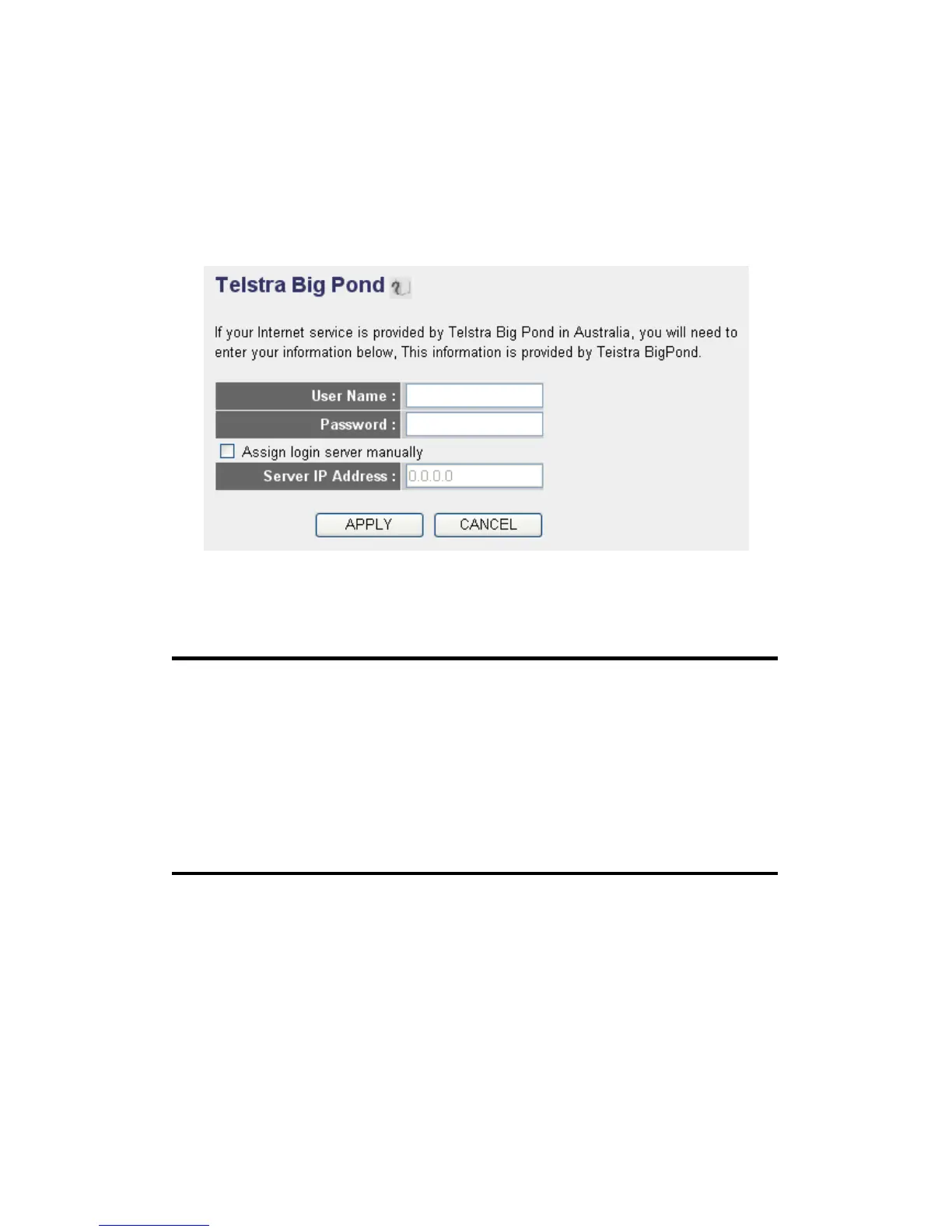

2-5-6 Setup procedure for ‘Telstra Big Pond’:
This setting only works when you’re using Telstra big pond’s network
service in Australia. You need to input:
User Name (1): Please input the user name assigned by Telstra.
Password (2): Please input the password assigned by Telstra.
Assign login Check this box to choose login server by yourself.
server manually (3):
Server IP Address (4):Please input the IP address of login server here.
When you finish with all settings, click ‘Apply’ (5) button and the
following message will be displayed on your web browser:
1
2
3
4
5

Getnet GR-724W Specifications

General

VPN support	IPSec/PPTP
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11n:14±1.5dBm 11g:14±1.5dBm 11b:18±1.5dBm 300Mbps OFDM, 10% PER, ‐ 65±2dBm 54Mbps OFDM, 10% PER, ‐ 73±2dBm 11Mbps CCK, 8% PER, ‐ 86±2dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	-
WLAN data transfer rate (max)	300 Mbit/s
Interface	WAN, LAN, WiFi
Input current	0.5 A
Input voltage	12 V
Number of users	253 user(s)
Dimensions (WxDxH)	163 x 112 x 30 mm
USB ports quantity	0
Supported protocols	WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond
Compatible operating systems	Windows Vista/7
NAT functionality	NAT/NAPT IP Sharing
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	4
Flash memory	4 MB
Certification	CE, FCC
Internal memory	16 MB
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black

Weight and Dimensions

Weight	- g
