Start-up Configuring Applause Media System
Page 4-4 MDE-4699L Applause™ Media System Installation, Service, and Parts Manual · June 2017
10 Enter the Gilbarco Site Server IP address (10.5.48.66). You will be prompted to enter a
username and password. Enter “gilbarco” as the username and “admin” as the password. The
Setup Screen appears.
Note: The server IP address may be different if
the IP address that was programmed
previously was different from the default settings.

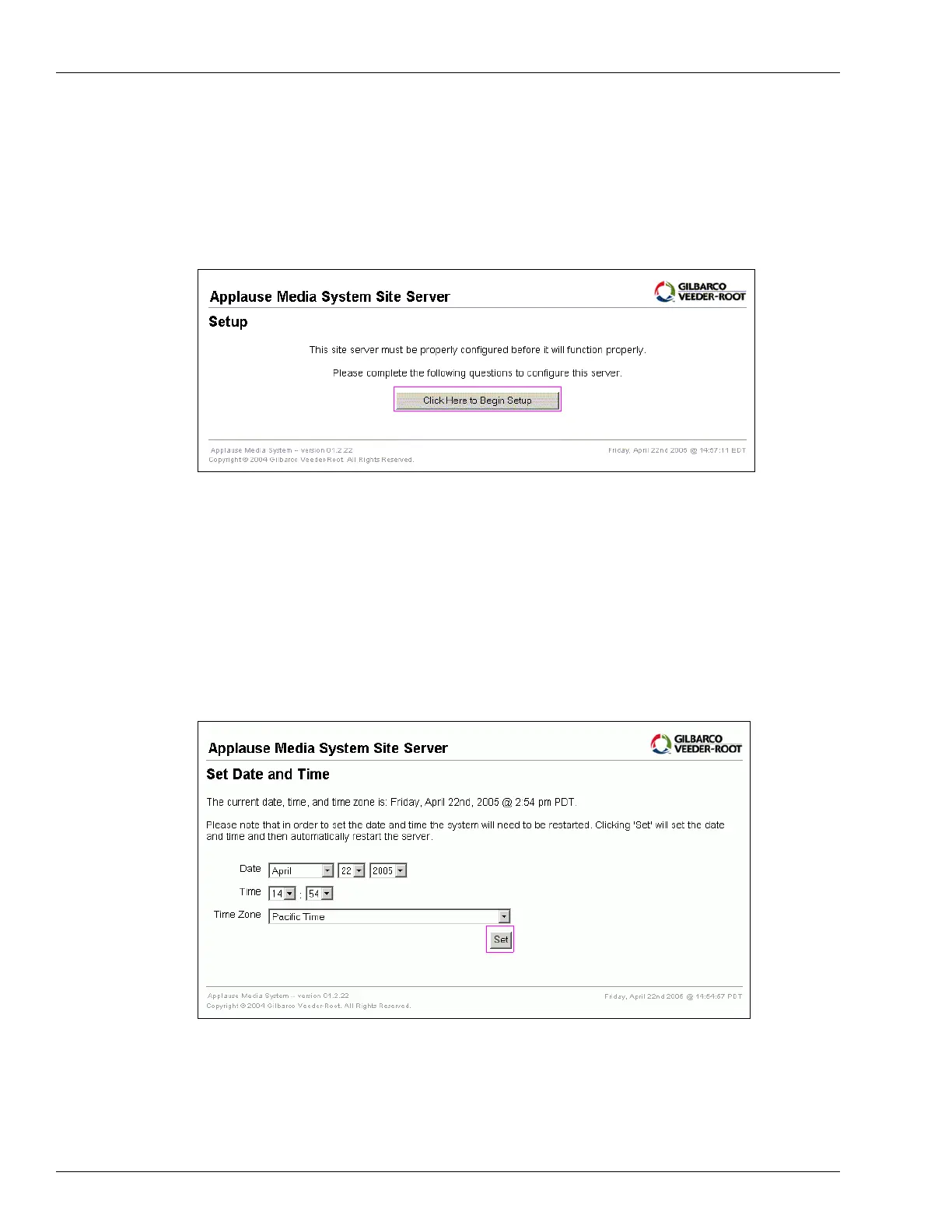

Figure 4-1: Setup Screen
Configuring Applause Media System
This section provides information on how to configure the Applause Media System.
To configure the Applause Media System, proceed as follows:
1 After you connect to the Gilbarco Site Server IP address, click Click Here to Begin Setup in
the Setup screen. The Set Date and Time screen appears.
Figure 4-2: Set Date and Time Screen
Note: Ensure that you select the correct time zone.
To Next Page
