Broadband Router and Network Configuration Configuring Cisco® Router
Page D-2 MDE-4699L Applause™ Media System Installation, Service, and Parts Manual · June 2017
Accessing Setup Page of Q13708-08B Router
To access the setup page of the Q13708-08B Router, proceed as follows:
1 Verify that the laptop’s Local Area Connection is set to Obtain Automatically.
2 Disable any laptop wireless connections.
3 Connect the laptop to port 1 of the Q13708-08B.
4 Open up Internet Explorer and in the address bar enter in 192.168.1.1.
5 Click Continue to this website (not recommended) if a security certificate error is shown.
6 Enter admin as the username, and admin as the password.
7 Press Login to access the router.
Note: This setup applies to sites utilizing the
Applause Media System default IP scheme
(10.5.48.XX). Variations to this setup may be provided by site IT personnel depending
on customer requirements.
Setting up Q13708-08B Router
To set up the Q13708-08B Router, proceed as follows:
1 Under the Setup menu, select Network.
2 Under LAN Setting, change the Device IP Address to 10.5.48.1 and click Save.
3 Click OK when prompted to save the changes.

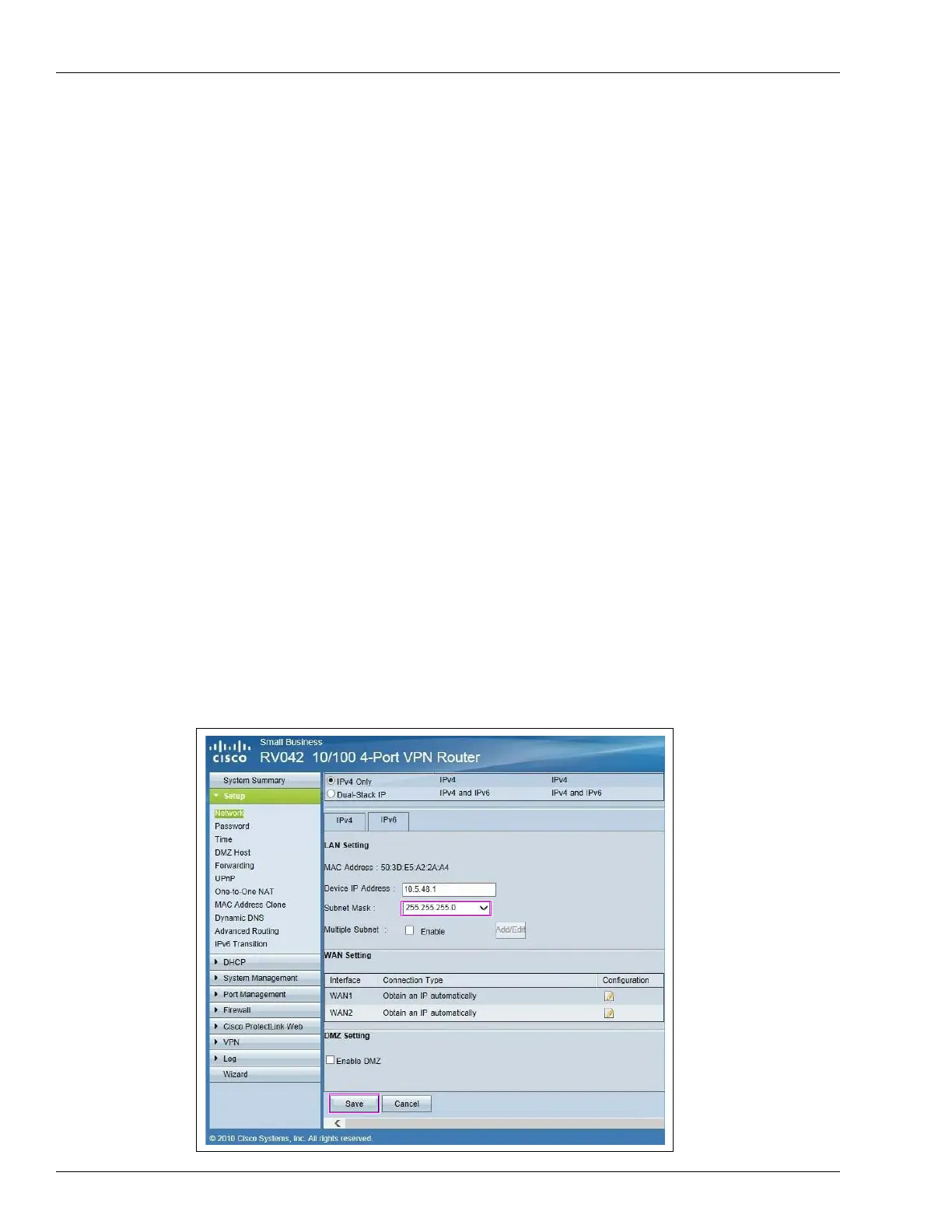

Figure D-2: Cisco Router Settings
