MDE-4699L Applause™ Media System Installation, Service, and Parts Manual · June 2017 Page C-1
Configuring Site Server IP Addresses for Applause Media System (when IP Addresses Are Changed)
Appendix C – Configuring Site Server IP Addresses
for Applause Media System (when IP
Addresses Are Changed)
Perform a “Print System Health Report” command at the dispenser to retrieve the existing site’s IP
addresses. You must have a service diagnostic card to be able to print a system health report. This
can be done by pressing CLEAR on the customer keypad and then inserting a diagnostic card into
the card reader within 30 seconds.
IMPORTANT INFORMATION
This section provides the procedure to configure the Gilbarco Site Server IP addresses for the
Applause Media System, when the site server IP addresses are changed.
To configure the Gilbarco Site Server IP addre
sses for the Applause Media System, proceed as
follows:
Note: Before beginning the configuration, you nee
d to gain access to programming on the
Gilbarco Site Server.
1 Connect a laptop into port 2 on the site server with a crossover CAT-5 cable, or through a
router/LRE with a standard CAT-5 cable (see Figure C-1 and Figure C-2 on page C-2).
Note: You will have to set your laptop to a static IP
address on the same scheme as the site
server. If required, refer to “Configuring Static IP Address on Your Laptop” on
page C-12 for instructions.

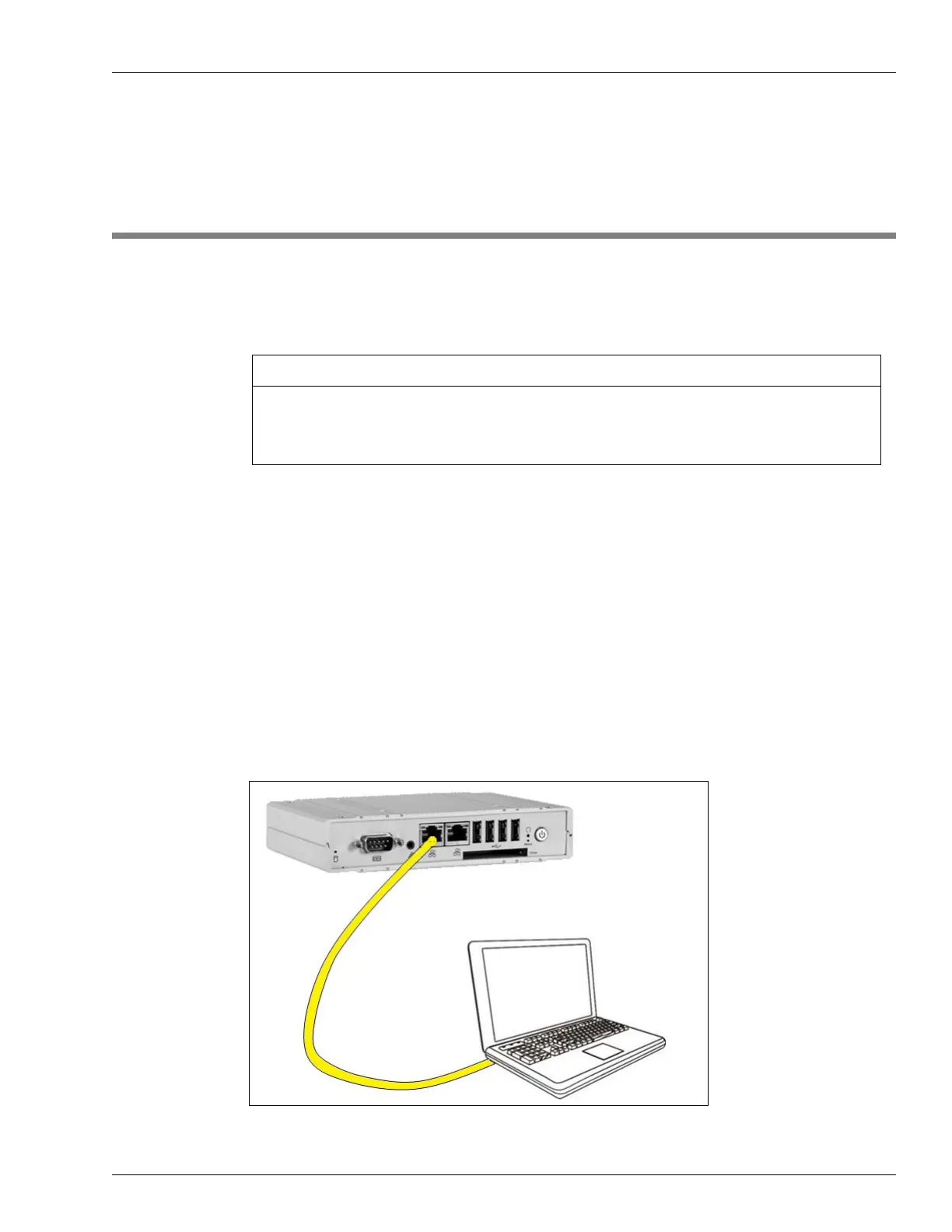

Figure C-1: Connecting to Site Server
Laptop
Site Server 1U
CAT-5
Crossover
Cable
To Next Page
