3-10
AUTO BUMP / CAL STATION - HANDBOOK
3.1.3 Calibration
This feature provides the user with the option of performing a
full calibration of the instrument.
Gas is applied, using the GMI Test Gas Cylinder (Part No.
99146) for a full 60 seconds and the Auto Bump / Cal Station
will record a ‘Pass’ when the target values, as listed in ‘Testing
Gases’ window illustrated in Fig. 3-12, are attained.
To select this option, position the cursor on the adjacent radio
button then left click mouse button to conrm, as illustrated
in Fig. 3-12.

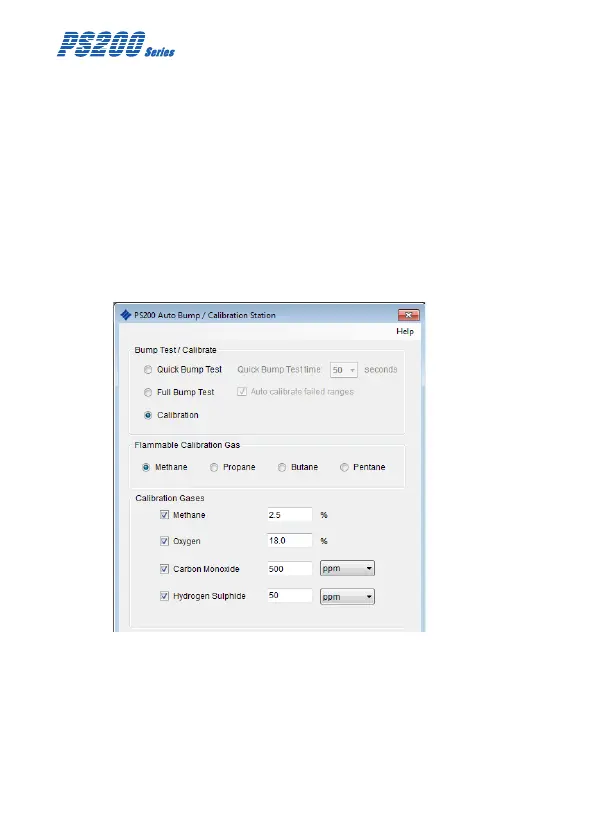

Fig. 3-12 Calibration Option
