860-7200-18 DTU DTB Service & Maintenance Manual
5.5
4.5
4.5
5.5

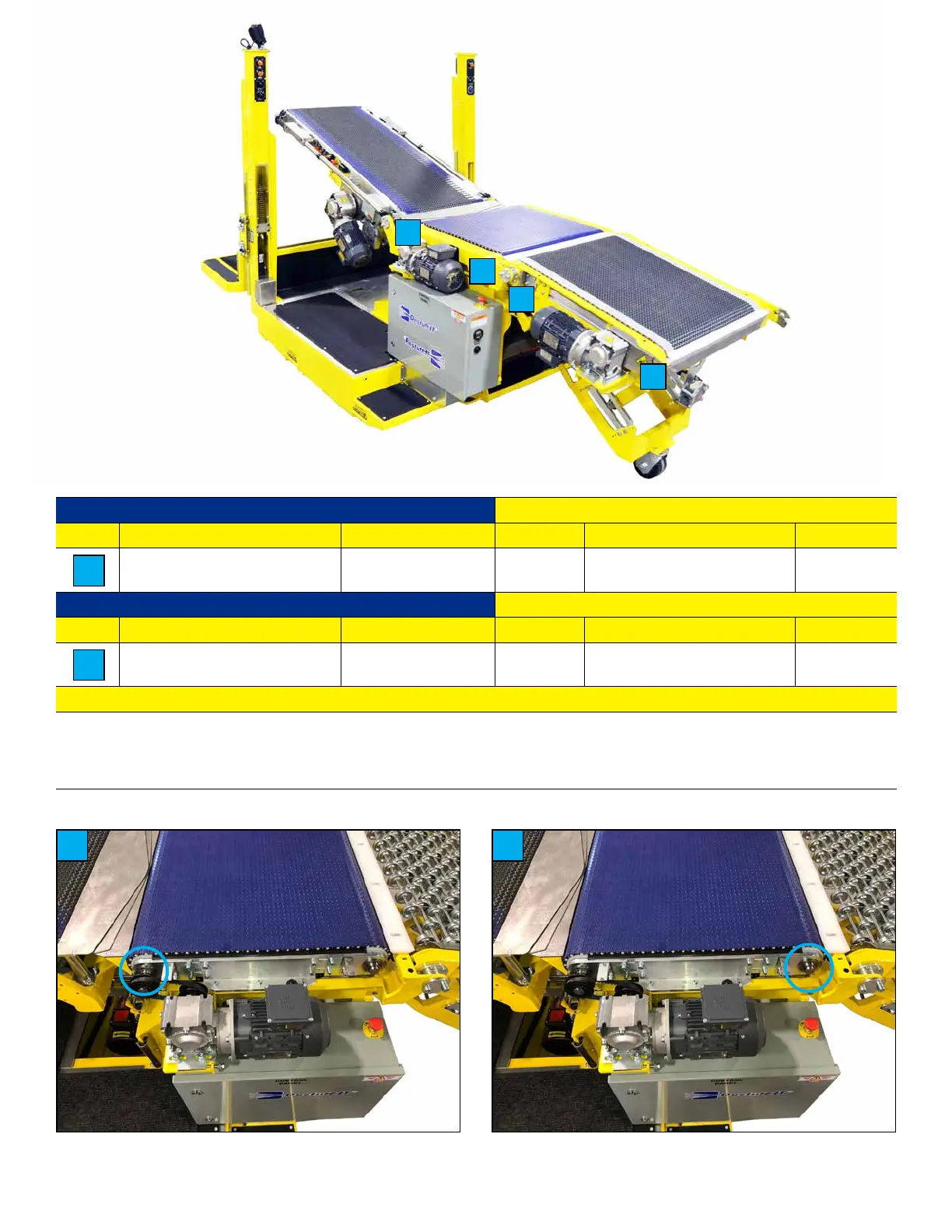

Drive shaft bearing under cover plate of middle conveyor
(left side of machine)
Idler shaft bearing under cover plate of middle conveyor
(left side of machine)
4.5 4.5
LOCATION: Middle Conveyor GREASE
ITEM PART INTERVAL FITTING TYPE QTY
Drive and Idler Shaft
Bearings (4)
Every 2,000 hours Straight
NLGI 2 grease such as
Castrol MP
0�04 oz
LOCATION: Rear Conveyor (Modular Belt) GREASE
ITEM PART INTERVAL FITTING TYPE QTY
Drive and Idler Shaft
Bearings (4)
Every 2,000 hours Straight
NLGI 2 grease such as
Castrol MP
0�04 oz
NOTES
If possible relubricate while the bearing is rotating� Add full amount until grease purge is seen from the seals� If this is
not an option for safety reasons, follow this alternate procedure: Stop rotating equipment� Add half the grease� Start the
bearing and run for a few minutes� Stop the bearing and add the second half of grease�
