860-7200-18 DTU DTB Service & Maintenance Manual

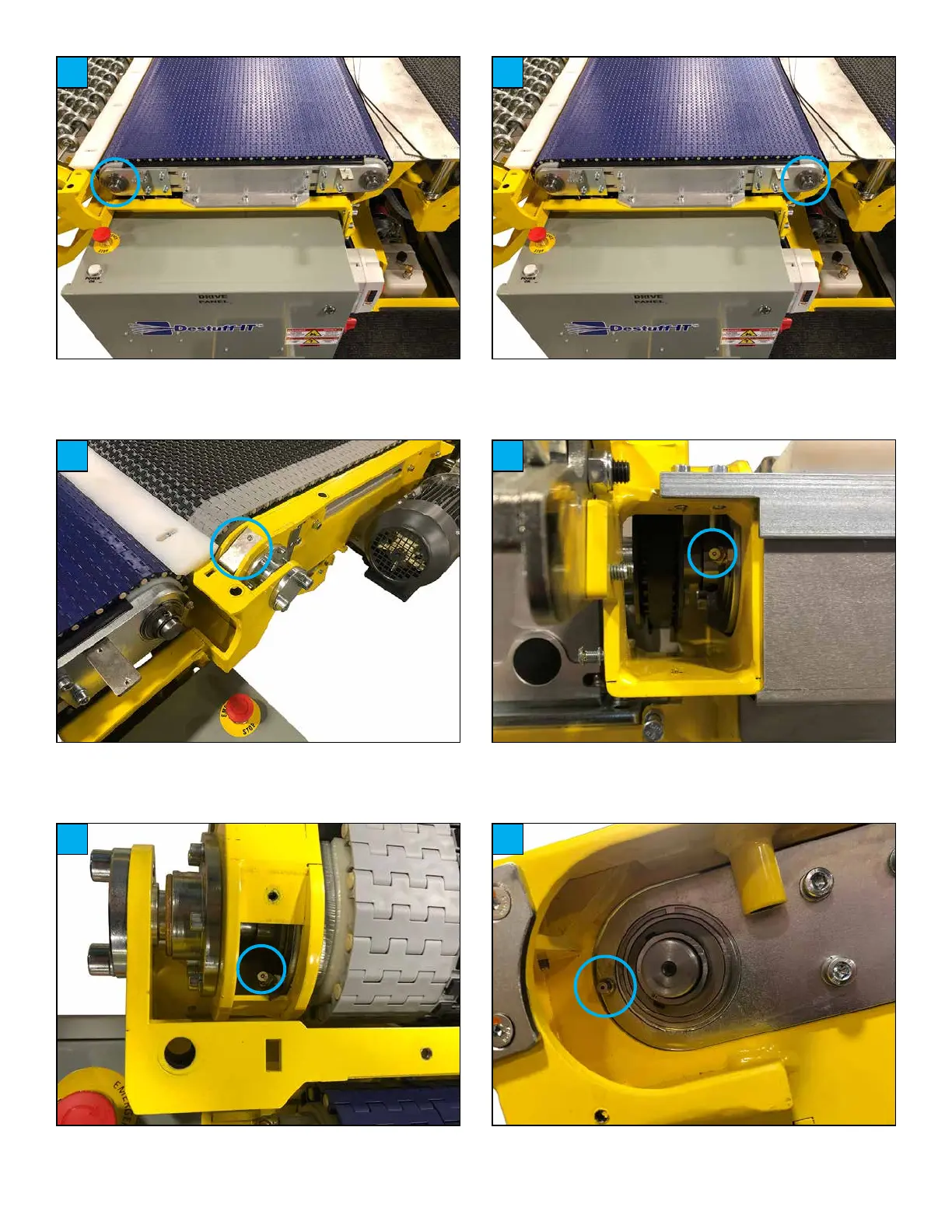

Idler shaft bearing under cover plate of middle conveyor
(right side of machine)
Idler shaft bearing under cover plate of rear conveyor
(left side of machine, front corner of rear conveyor)
Drive shaft bearing under cover plate of rear conveyor
(right side of machine, right corner of rear conveyor)
Drive shaft bearing under cover plate of middle conveyor
(right side of machine)
Drive shaft bearing under cover plate of rear conveyor
(left side of machine, rear corner of rear conveyor)
Idler shaft bearing beneath cover plate of rear conveyor
(right side of machine, front corner of rear conveyor)
4.5
5.5
5.5
4.5
5.5
5.5
