860-7200-18 DTU DTB Service & Maintenance Manual
5.8
7.4
9.5 9.6
6.2
Casters on front of base and rear conveyor support frame
5.8 6.2

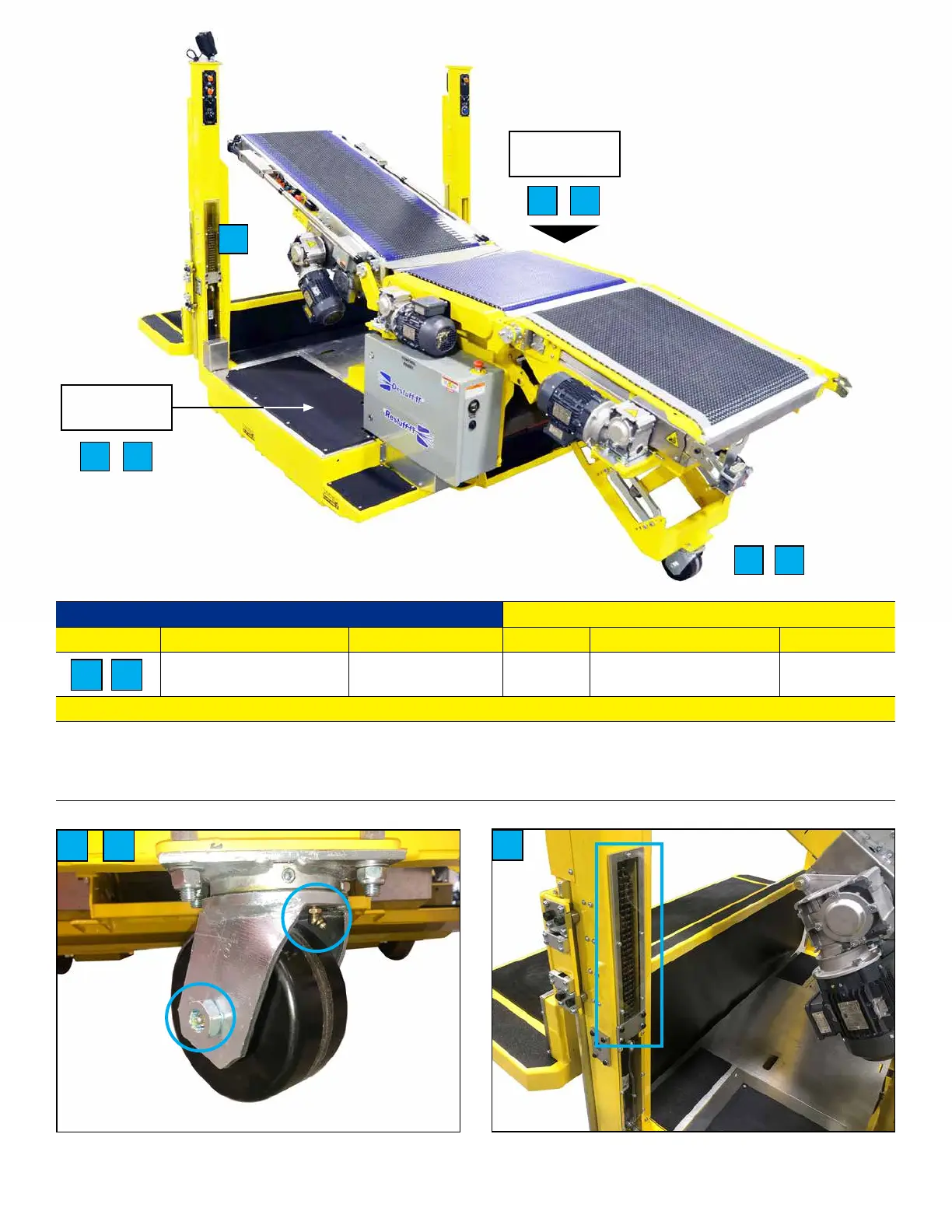

LOCATION: Rear Conveyor (Gravity Wheel) GREASE
ITEM PART INTERVAL FITTING TYPE QTY
Caster on support frame Every 1,000 hours Straight
NLGI 2 grease such as
Castrol MP
See notes
NOTES
Apply grease to the wheel and swivel bearings� There is one grease nipple on the center of the wheel axle and one on
the caster pivot plate. Use enough grease to ll the bearing, but not so much that it oozes out of the grease seal. Also
apply some grease externally to the friction points on the wheel, washers and leg surfaces�
5.8 6.2
Operator platform cylinder lift chain (left mast)
7.4
8.1 8.4
Under
middle conveyor
Under
oor plates
