104

MDE-LEDInetworkITS-server-4078V1.3

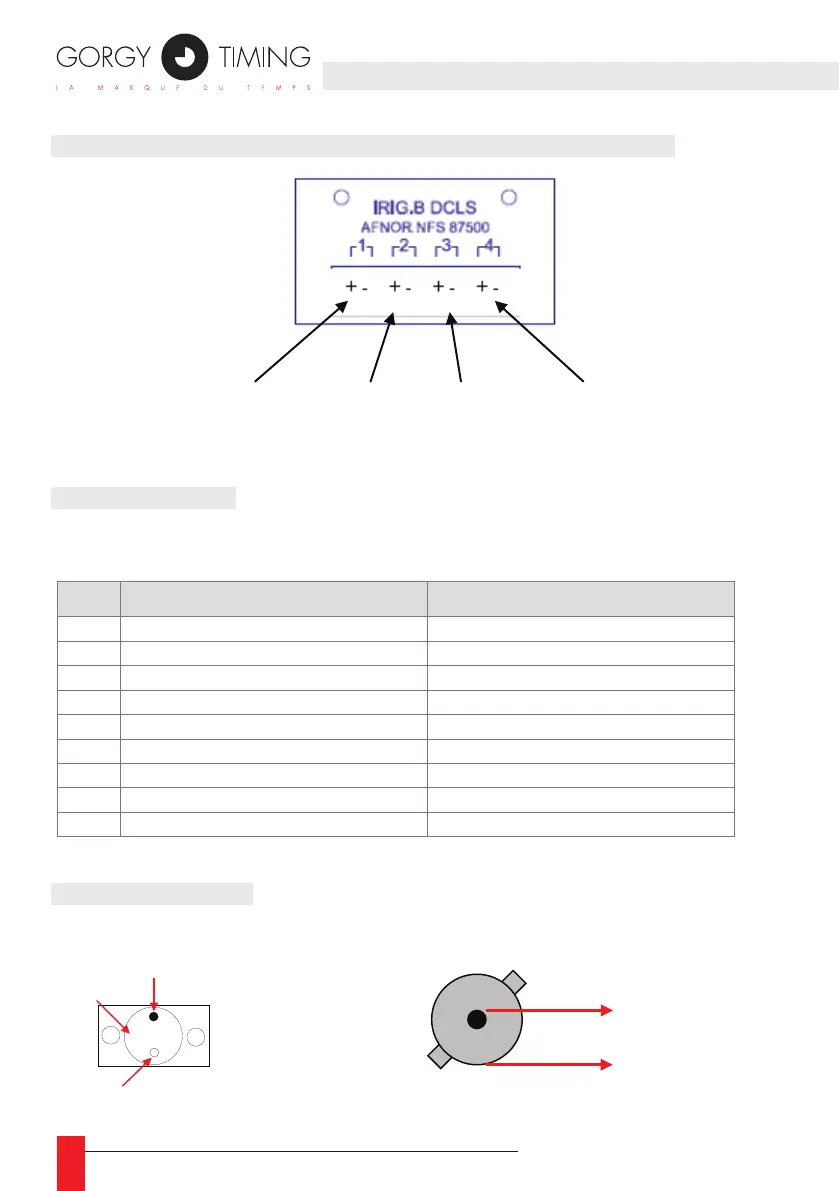

APPENDIX B – OUTPUT CODE FORMAT



7. ASCII OUTPUT

4 outputs on DB9 connector:

RS232 RS485 / RS422

1 TX4 TX4-

2 GND TX1+

3 TX1 TX1-

4 GND TX4+

5 GND TX3+

6 TX3 TX3-

7 TX2 TX2-

8 GND TX2+

9 N.C. N.C.

8. SMPTE OUTPUT



Output 1 Output 2 Output 3 Output 4

1 GND

2 Hot

3 Cold

Blackburst

GND
