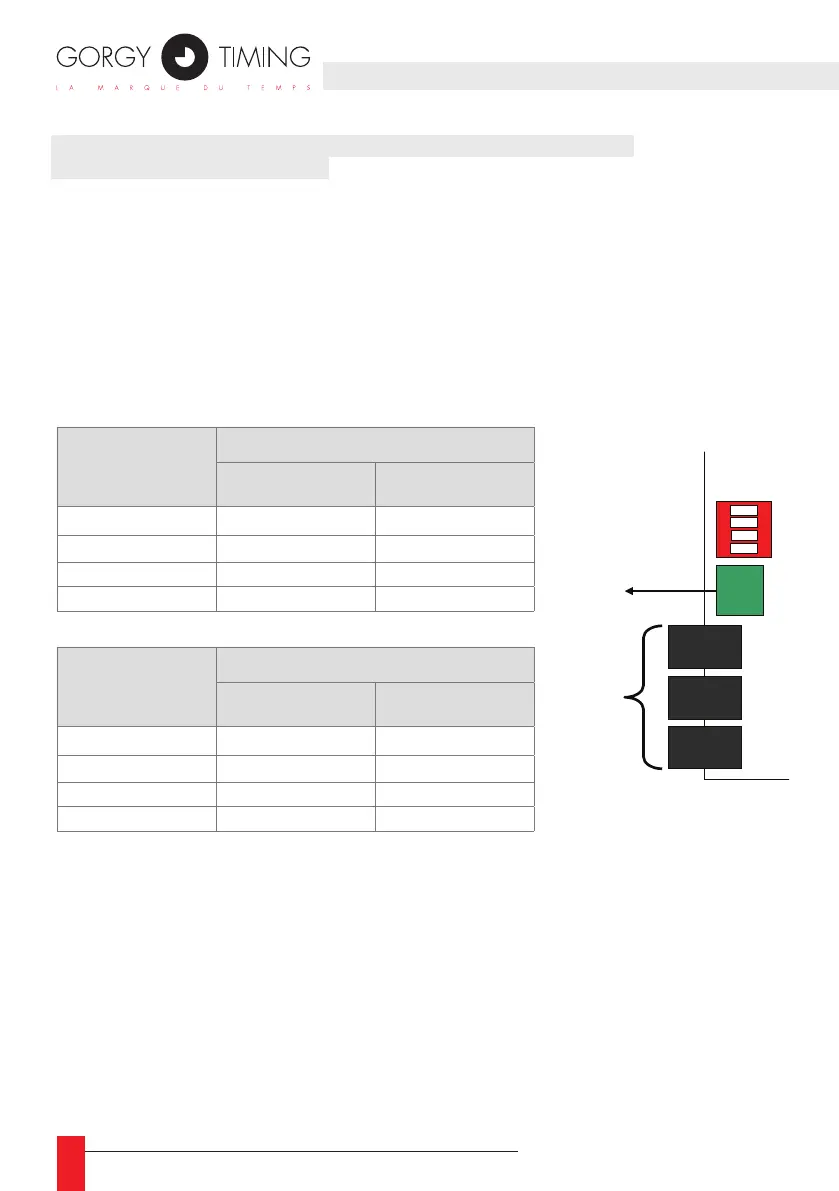

3. INPUT SIGNAL FORMAT MODIFICATION ON PULSES
AND IRIG-B DCLS CARDS
The LEDI Network DCLS and LEDI Network ITS (with the AFNOR NFS87500/IRIG-B op-
tion) can accept several kind of AFNOR NFS87500/IRIG-B input signal depending on the
switches conguration on the main board.

TIME CODE TYPE :
Input code
Input 1
Switch 1 Switch 2
IEEE1344 OFF (Left) OFF (Left)
IEEE1344 ON (Right) OFF (Left)
IRIG-B OFF (Left) ON (Right)
AFNOR ON (Right) ON (Right)
Input code
Input 2
Switch 3 Switch 4
IEEE1344 OFF (Left) OFF (Left)
IEEE1344 ON (Right) OFF (Left)
IRIG-B OFF (Left) ON (Right)
AFNOR ON (Right) ON (Right)
To the
battery
To the
cards
1
2
3
4
OFF ON
