5.4 Creating a Test Structure in the Test Instrument, Navigating within the Structure and Displaying Measured Values
Overview of the Meanings of the Symbols for Creating Objects – Navigation within Test Structures

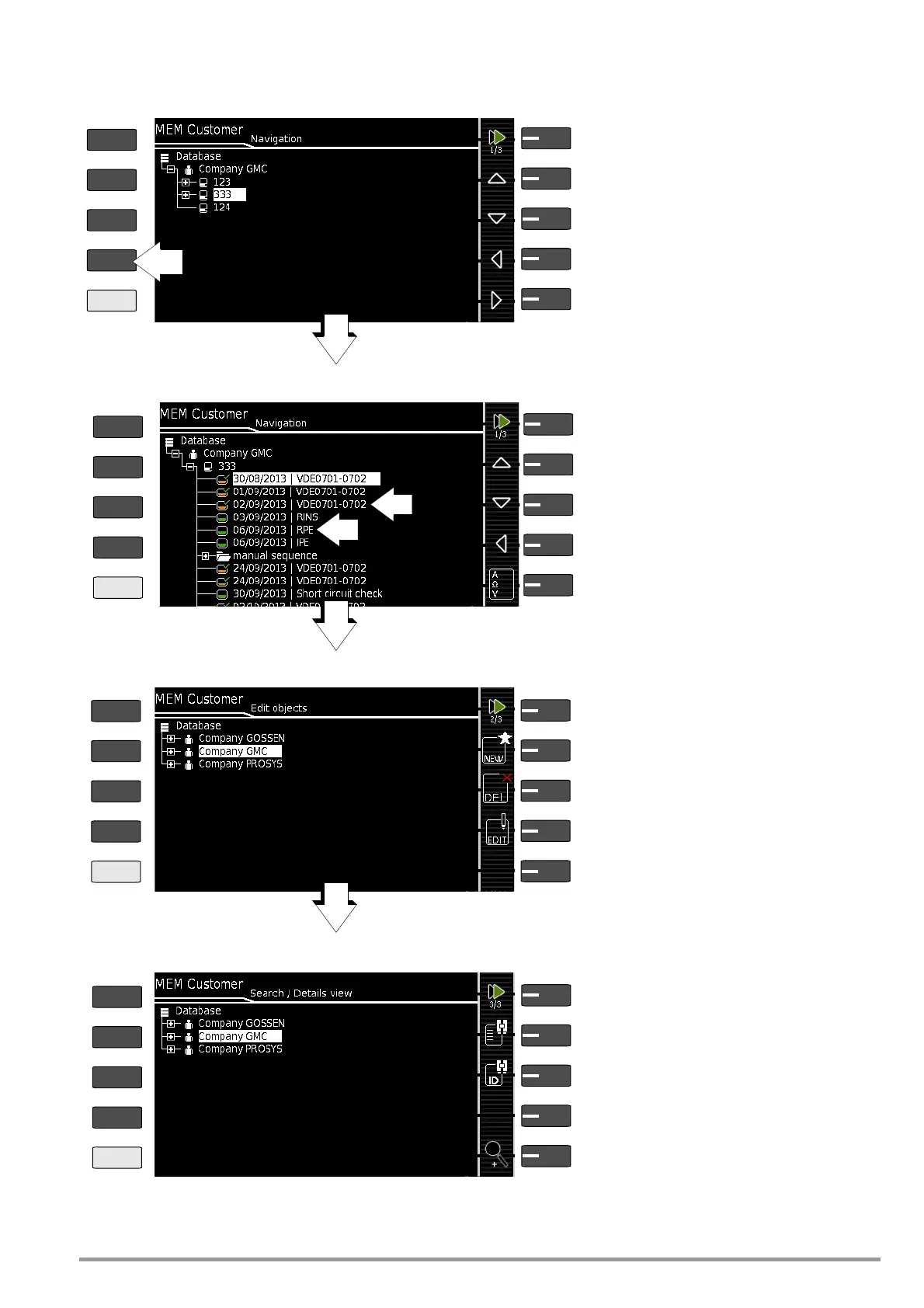

Figure 7 Overview of Navigation, Object Editing and Object Search in the Database
Scroll to next menu (page 2/3)
Object selection menu – page 1/3
PRINT
ESC
HELP
MEM
Select customers or devices
Select customers or devices
Select customers or devices
Scroll to next menu (page 3/3)
Object editing menu – page 2/3
Edit device/customer
Move object
Scroll to next menu (page 1/3)
Object search menu – page 3/3
Search by entering text
Search by entering IDs
Display designation and ID
of the selected device
MEM 1/3
MEM 2/3
MEM 3/3
Scroll to next menu (page 2/3)
Measurement selection menu – page 1/3
Selection of measurements
Selection of measurements
Jump back (one hierarchical level higher)
MEM 1/3
or close open branches
Jump back (one hierarchical level higher)
or close open branches
1
2
Display measured values for a selected test
1: Test sequence per standard (symbol: orange)
2: Single measurement (symbol: green)
Note: See page 17 concerning grayed out database elements.
Either “Delete selected customer, (ME) device or measure-
ment” or “Delete selected object with all subordinate
objects/measurements”
Add new (ME) device to the selected customer or
clone current element (as of firmware 3.0)
