GOWEIL MS 100 - 4 Design and Function; Overview; Brief Description

Knife sharpener MS 100
Design and function
14 10.03.2009
4 Design and function
Pos: 4.3 /KN2006- SM/Aufbau un d Funktion/002 1.1 Übersicht_Tit el @ 9\mod _1144046023 684_1.doc @ 844 32

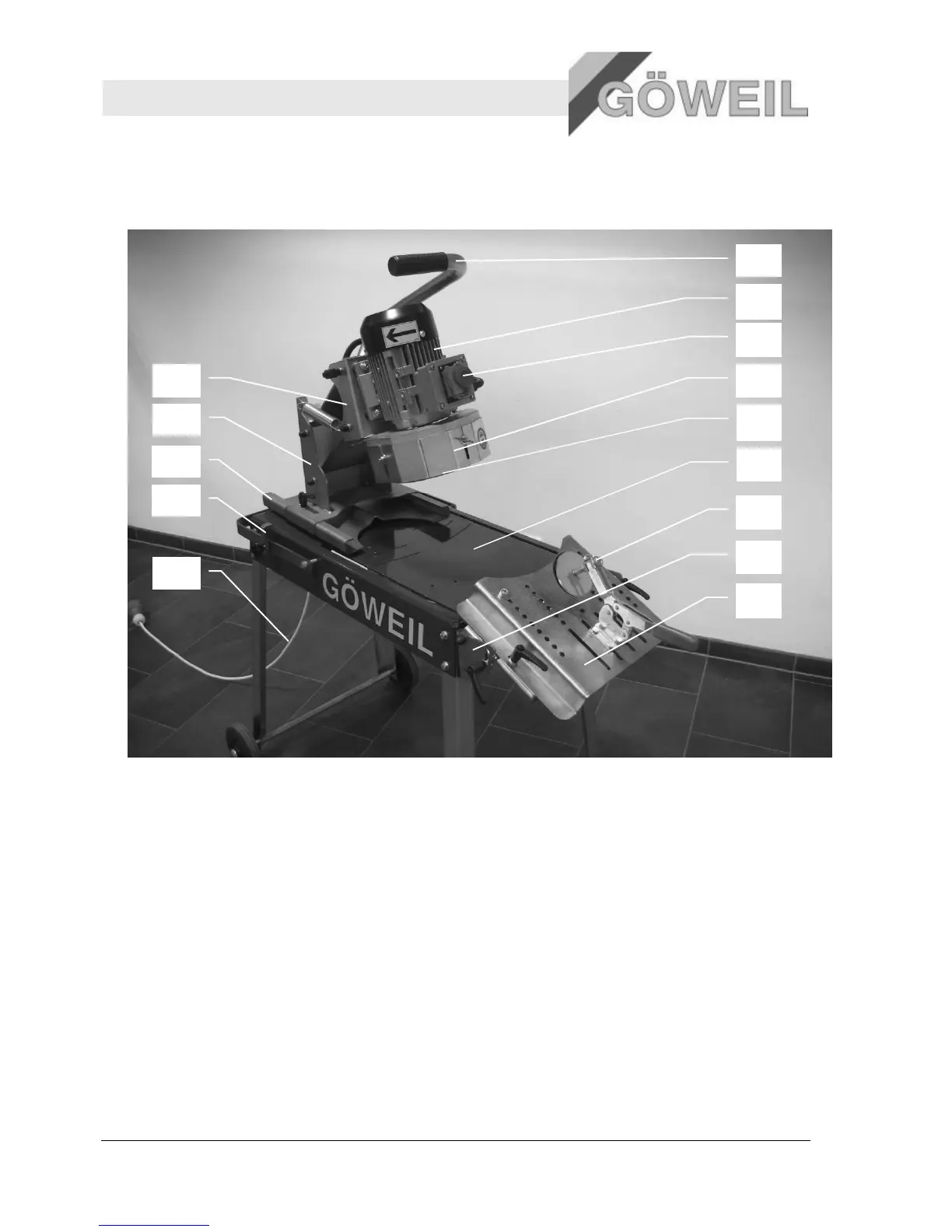

4.1 Overview
Pos: 4.4 /KN2006- Projekte/NSD Lift AG/Aufbau und Funktio n/1.1 Übersicht --> N SD Comf ort @ 45\mod_118 7697585102_ 1.doc @ 5660 22
1 Operating handle
2 Electric motor
3 ON/OFF switch with EMERGENCY STOP
4 Protection plate (adjustable)
5 Grinding disc
6 Grinding table
7 Clamping device
8 Linear grinding unit (additional equipment)
9 Adjusting plate
10 Motor support
11 Support unit
12 Rotary unit
13 Rotation limiter
14 Connection cable
4.2 Brief description
The knife sharpener is intended only for sharpening concave, curved knives - as well as straight
knives when combined with the optional "linear grinding unit" - which are used in agricultural
presses and trailers with loading facility.
Place the knife onto the adjusting plate and fix it in place using the clamping device. Now, you
must adjust the grinding unit on the rotary plate such that the knife can be sharpened at the
corresponding radius. When all these adjustments have been made, you can sharpen the knife.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
