8. To prevent the long encoder cable from
catching the carriage, use the adhesive zip
tie mount and zip tie to fasten the cable to
the side of the bottom carriage.
Zip Tie
Mount
9

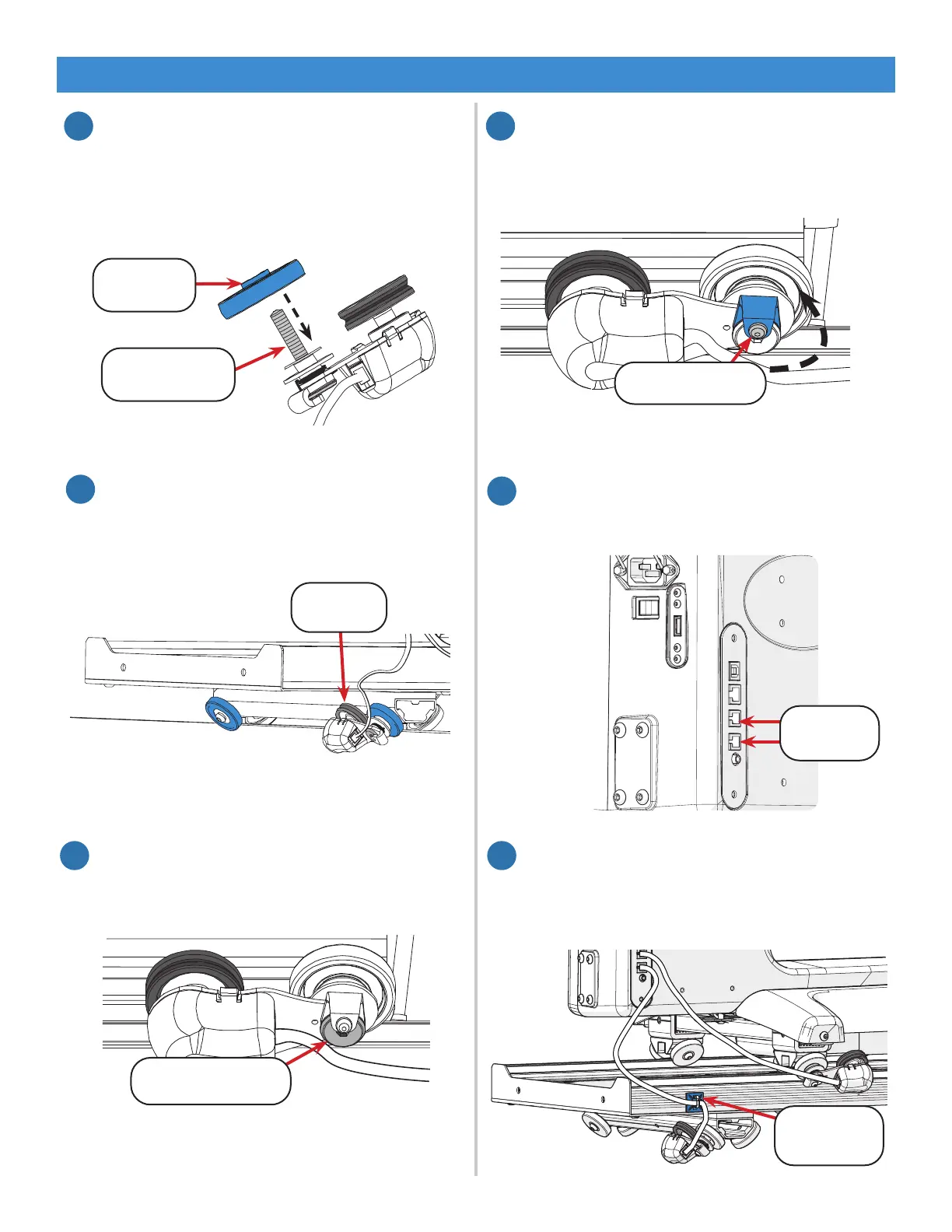

Installing the Lower Encoder (Continued)
Out-of-the-Box Assembly
3. Slide the wheel onto the encoder screw
with the wheel hub facing away from the
encoder.
Wheel
Hub
Encoder
Screw
4
4. Place the encoder screw into the left rear
wheel hole on the carriage so the O-ring is
between the rear wheels.
O-Ring
5
5. Tighten the encoder screw with the 4 mm
Allen wrench.
Encoder Screw
6
6. Turn the encoder lock collar (shown in
blue) to point up. Then tighten the lock
collar screw with the 2.5 mm Allen
wrench.
Lock Collar
Screw
7
7. Plug the encoder cable into one of the
encoder ports on the left rear of the
machine.
Encoder
Ports
8
To Next Page
