21
Parts & Tools Needed:
Instructions
The encoders monitor the movemet of the machine over the frame, allowing for regulated stitching.
The upper encoder is installed on the outward-facing, left-rear wheel of the machine. Please take the
following steps to install the upper encoder:

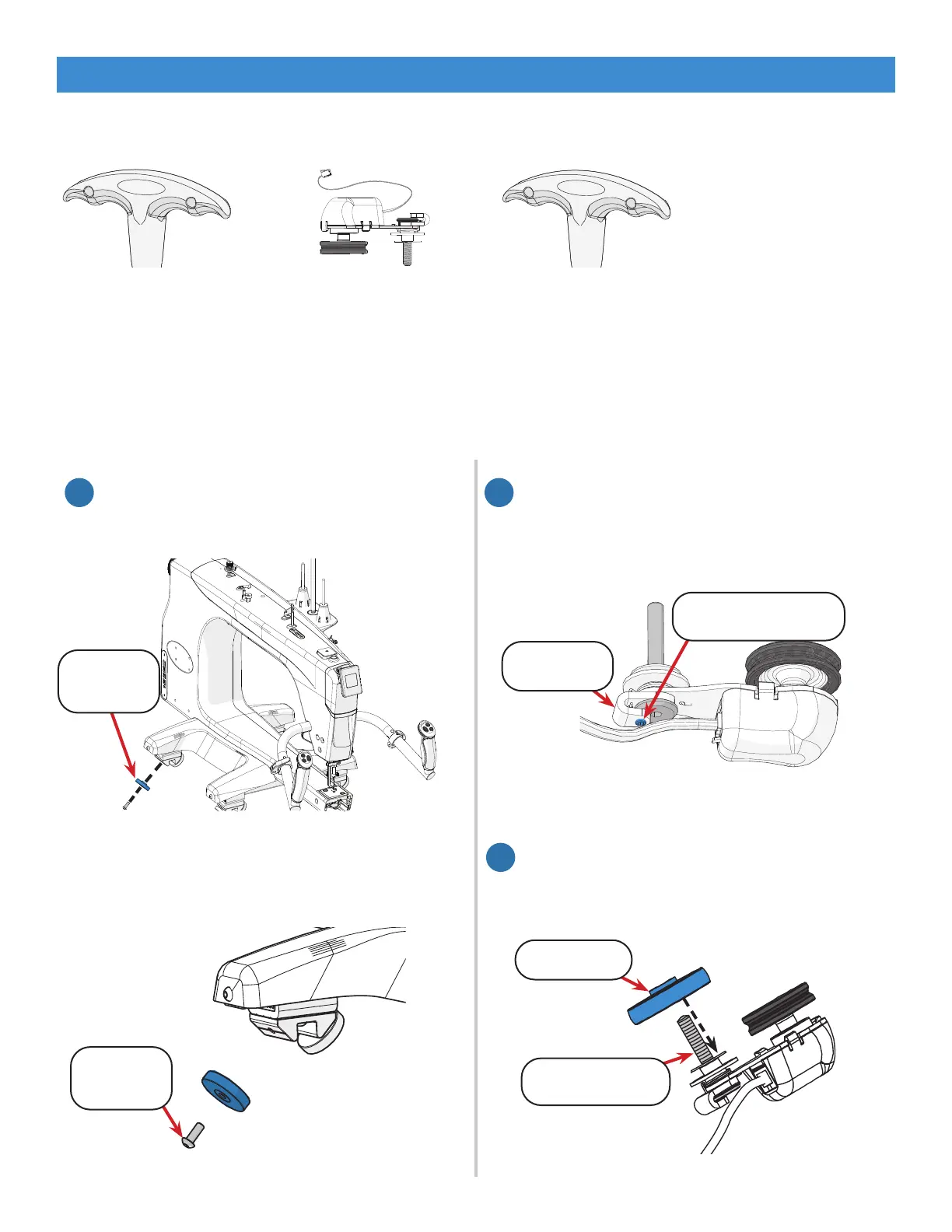

Installing the Upper Encoder
T-handle Allen
Wrench 4 mm
4 mm
2.5 mm
T-handle Allen
Wrench 2.5 mm
Upper Encoder
(silver spring)
Out-of-the-Box Assembly
2. Slide the wheel onto the upper encoder’s
screw so that the wheel hub faces away
from the encoder.
Wheel Hub
Encoder Screw
3
The wheel screw will not be needed
again and can be stored with the packaging
materials.
1. Use the 4 mm T-handle Allen wrench to
remove the left rear wheel from the
machine.
1
Left Rear
Wheel
Wheel
Screw
Lock Collar
Lock Collar Screw
1. Loosen the lock collar screw on the upper
encoder with the 2.5 mm Allen wrench until
the lock collar turns freely.
2
To Next Page
