Grace Q'nique 21 - Installing the Wheels

13
Instructions
To install the machine wheels and adjust them to t your bottom carriage:
Set up the frame before
assembling the machine.

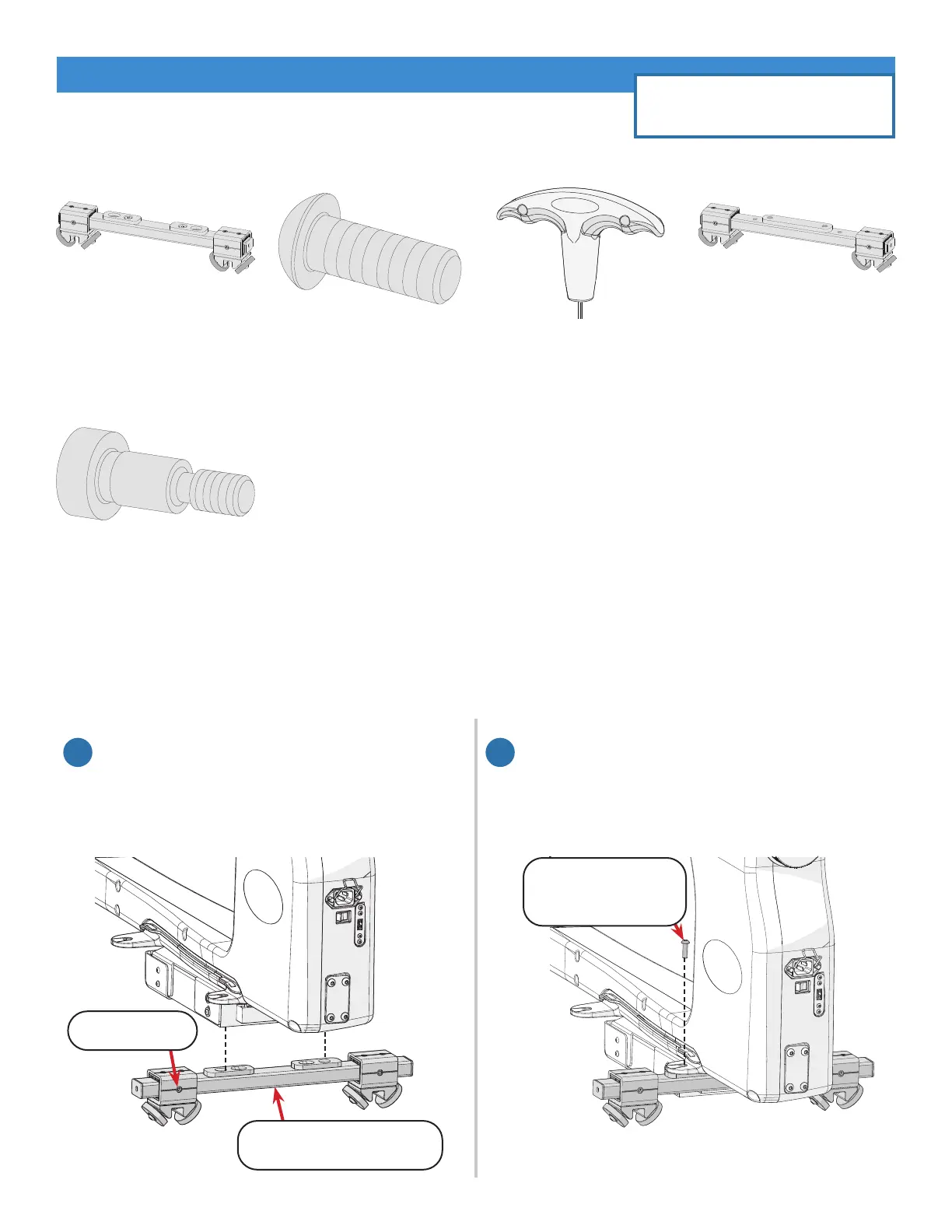

Parts & Tools Needed:
Out-of-the-Box Assembly
Installing the Wheels
Front Wheel
Support Assembly
Back Wheel Support
Assembly
Shoulder Bolt
M6 (x2)
SBHCS Screw
M6 x 20 mm (x2)
T-handle Allen
Wrench 4 mm
4 mm
2. Use two M6 x 20 mm SBHCS screws and
the 4 mm Allen wrench to secure the wheel
support assembly.
2
SBHCS screw
M6 x 20 mm (x2)
1. Place the back wheel support assembly
under the rear of the machine with the set
screws facing the rear.
1
Back Wheel Support
Assembly
Set Screw
