Parts & Tools Needed:
Instructions
The encoders monitor the movement of the machine over the frame, allowing for regulated stitching.
The lower encoder is installed on the left-rear wheel of the bottom carriage. Please take the following
steps to install the encoder onto the bottom carriage:

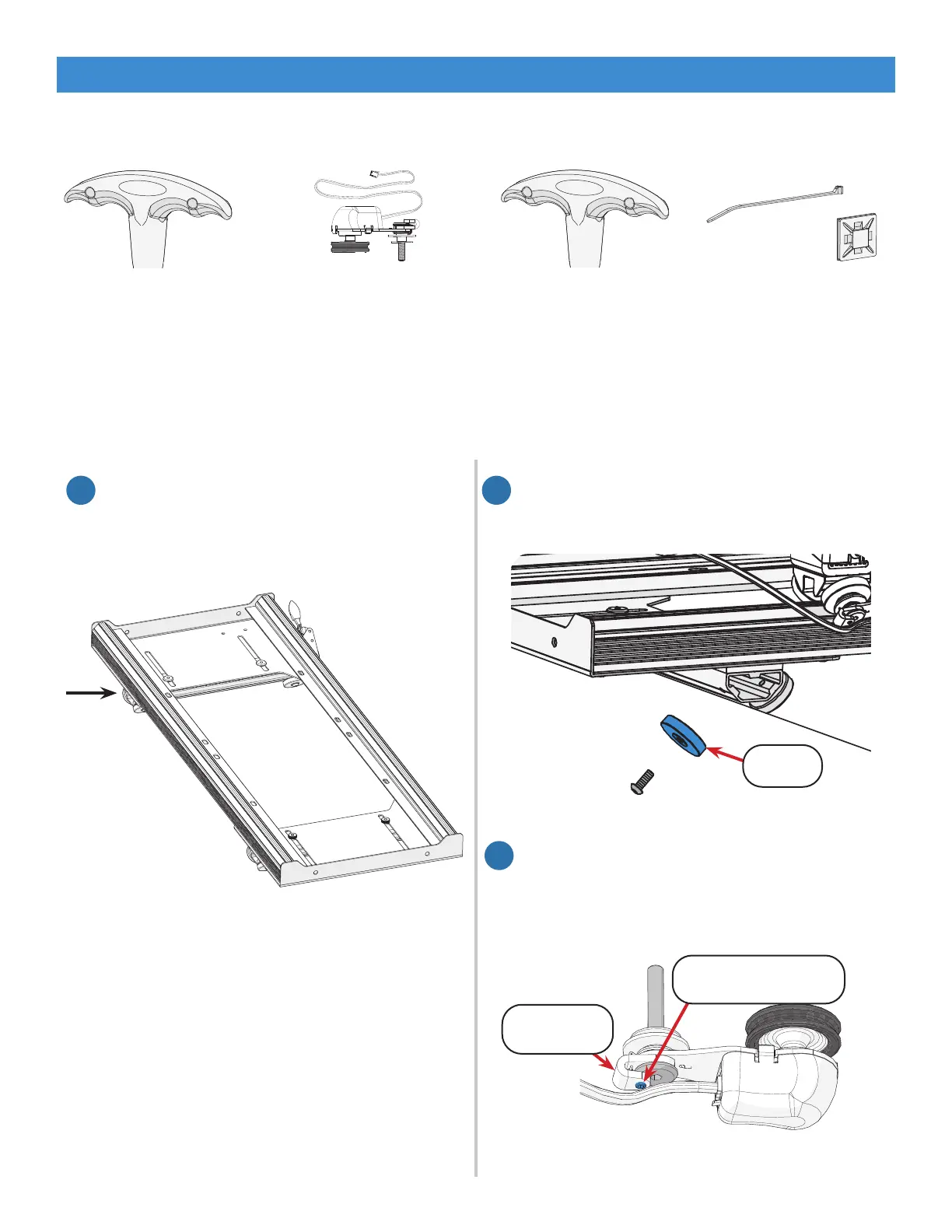

Installing the Lower Encoder
Zip Tie (2)
Zip Tie Mount (2)
T-handle Allen
Wrench 4 mm
4 mm
2.5 mm
T-handle Allen
Wrench 2.5 mm
Lower Encoder
(black spring)
1. Locate the left rear wheel of your bottom
carriage.
Note: If needed, review your frame assembly
manual to determine the front of the bottom
carriage.
2. Use the 4 mm Allen wrench to remove the
outward-facing, left rear wheel from the
bottom carriage.
Wheel
Out-of-the-Box Assembly
2
1
Lock Collar
Lock Collar Screw
1. Loosen the lock collar screw on the lower
encoder with the 2.5 mm Allen wrench until
the lock collar turns freely.
3
To Next Page
