73

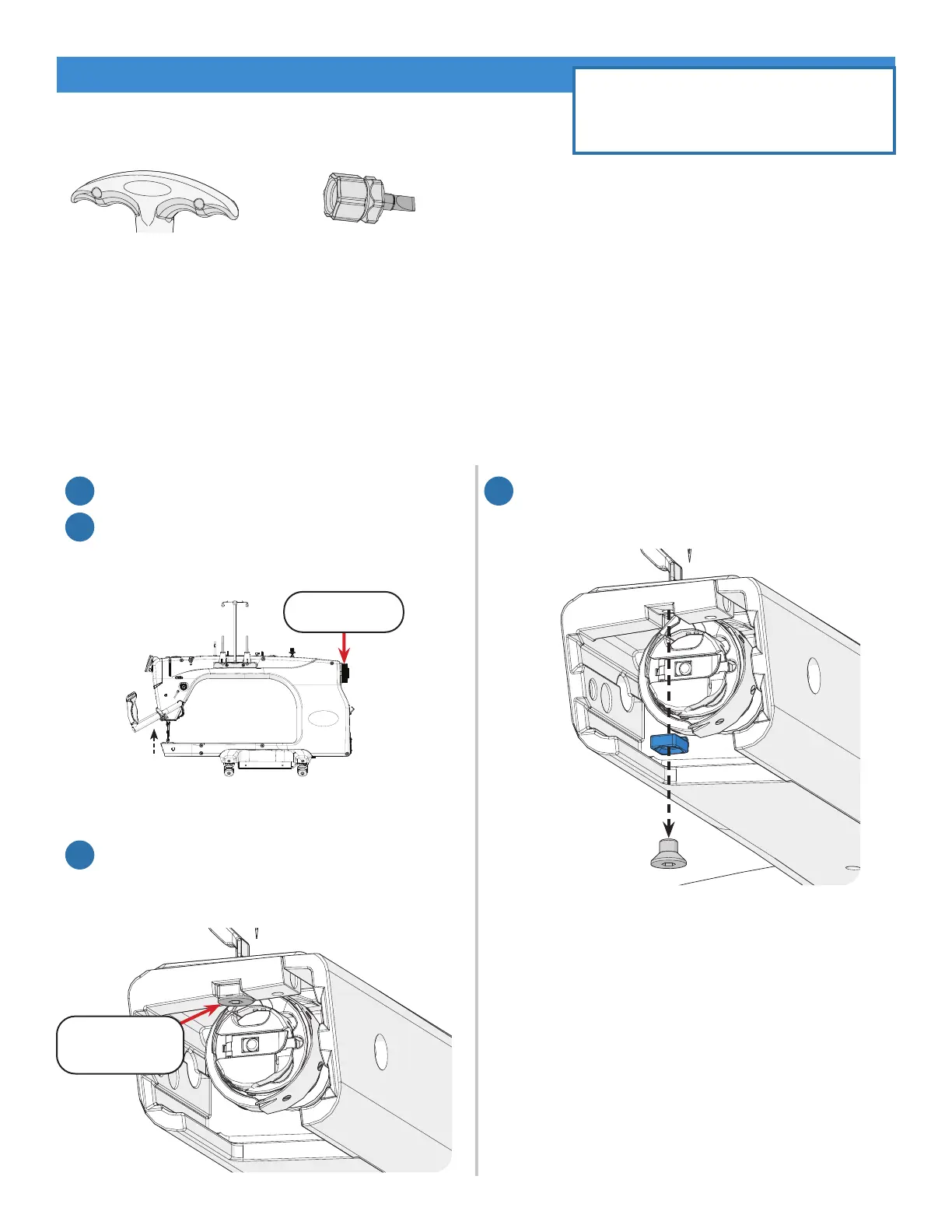

Removal Instructions
The hook holder keeps the hook assembly in place. The following procedure should only be
attempted if determined necessary by a Grace Company support technician. If done incorrectly,
major machine problems can result.
Reinstalling the Hook Holder
Parts & Tools Needed:
Please speak to a Grace Company
support technician before
attempting these instructions.
Flat-head Screwdriver
T-handle Allen
Wrench 3 mm
3 mm
Repairs and Diagnostics
1. Turn o the machine.
2. Rotate the hand wheel to raise the needle
to the highest point.
2
1
3. With the 3mm Allen wrench, remove the
hook holder screw that attaches the hook
holder to the machine.
3
Hook Holder
Screw
4. Slide the hook holder (shown in blue) from
the hook assembly.
4
Hand Wheel
To Next Page
