72

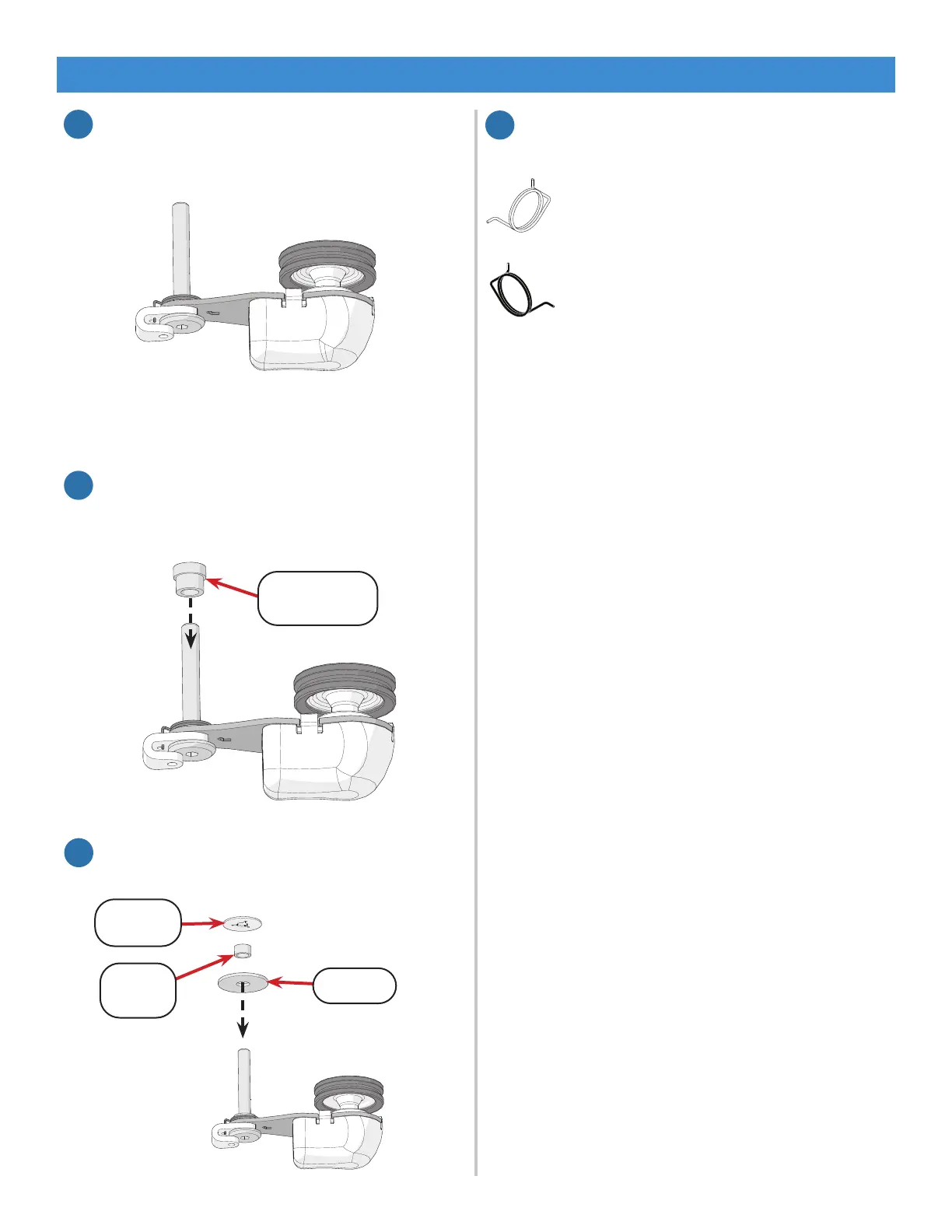

1. Adjust the screw and lock collar so the head
of the screw slides in between the lock collar.
2. Slide the shoulder spacer onto the screw
with the thinner side toward the head of the
bolt.
3. Next, place the washer, wheel spacer,
and plastic stop onto the encoder screw.
1. Complete the assembly instructions for the
encoder you repaired.
For the upper encoder (silver spring)
assembly instructions, see page 21.
For the lower encoder (black spring)
assembly instructions, see page 23.
10
11
12
13
Shoulder
Spacer
Plastic
Stop
Wheel
Spacer
Washer
Replacing the Encoder Spring (Continued)
Repairs and Diagnostics
