Grace Q'nique 21 User Manual

71

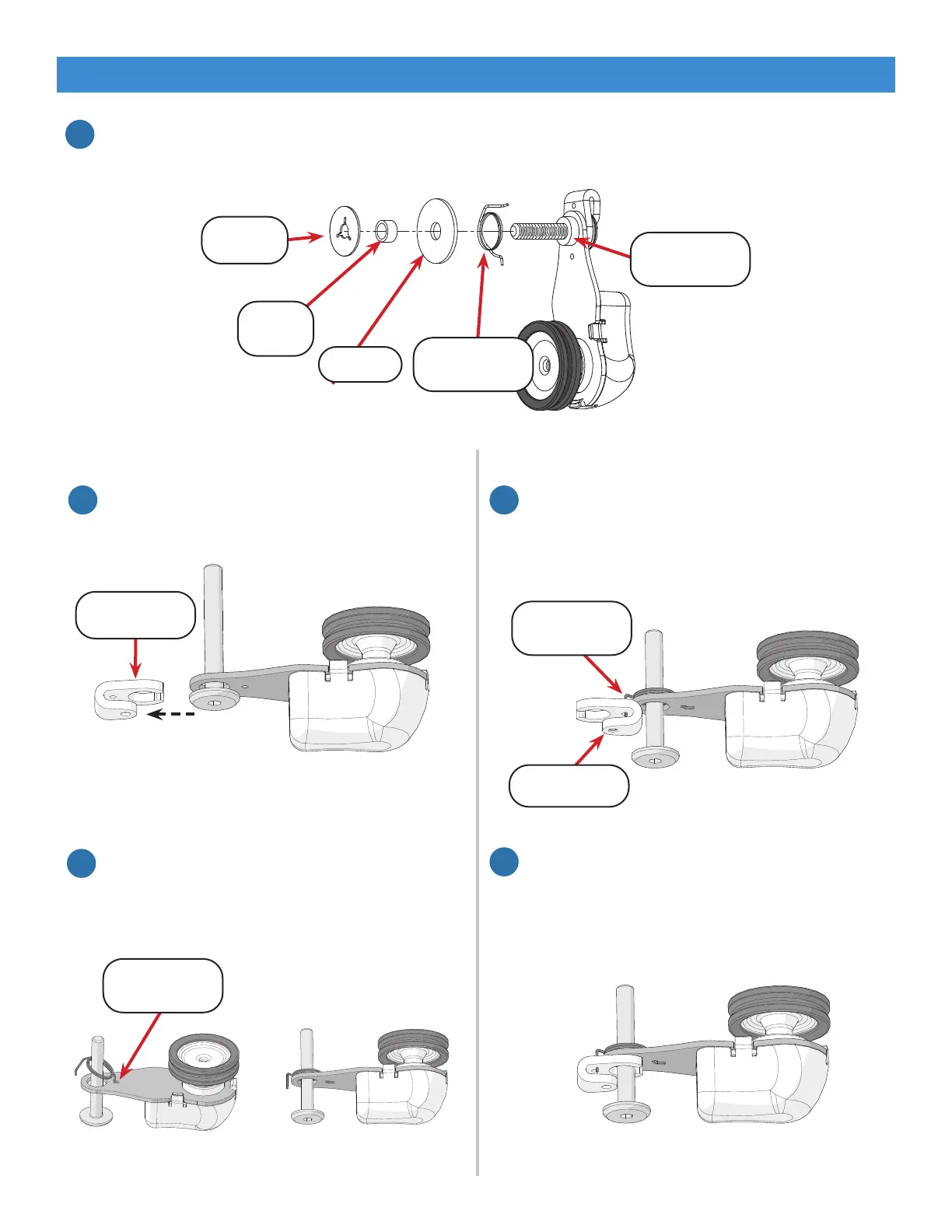

Replacing the Encoder Spring (Continued)
Repairs and Diagnostics
1. Remove the plastic stop, wheel spacer, washer, broken encoder spring, and shoulder
spacer from the encoder.
Shoulder
Spacer
Plastic
Stop
Wheel
Spacer
Washer
Encoder
Spring
5
2. Pull on the lock collar to remove it from
the encoder screw.
6
3. Place the replacement spring over the
encoder screw, and insert the short arm of
the spring all the way through the hole on
the encoder base.
7
4. Place the long arm of the encoder spring
arm into the hole on the encoder lock
collar.
8
Lock Collar
Short Spring
Arm
Long Spring
Arm
Lock Collar
5. Without allowing the arm to slip out of the
lock collar, rotate the collar until it wraps
around the encoder bolt.
9
