• Needle Plate (page 62)
Covers top hook assembly access.
• Timing Cut-Out (page 76)
Accesses hook assembly set screws.
• Hook Assembly (page 29)
Holds the bobbin case and hooks the top
thread to create stitches.
• Bobbin Case (page 29)
Holds M class bobbin and controls bottom
thread tension.
• Display (page 19)
Provides access to quilting options.
Handlebar Controls (page 17)
Controls machine functions.
10. Lamp (page 48)
Lights up needle area.
• Hopping Foot (page 57)
Presses fabric down when quilting.
• Needle Bar (page 54)
Holds the needle when quilting.
• Thread Cutter (page 31)
Cuts excess thread after threading machine.
• Bottom Thread Guide (page 31)
Positions thread when quilting.
• Thread Guide (page 31)
Positions thread when quilting.
• Large Thread Tensioner (page 44)
Adjusts thread tension.
• Machine Wheels (page 13)
Rides the bottom carriage rails and moves
the machine back and forth on the frame.

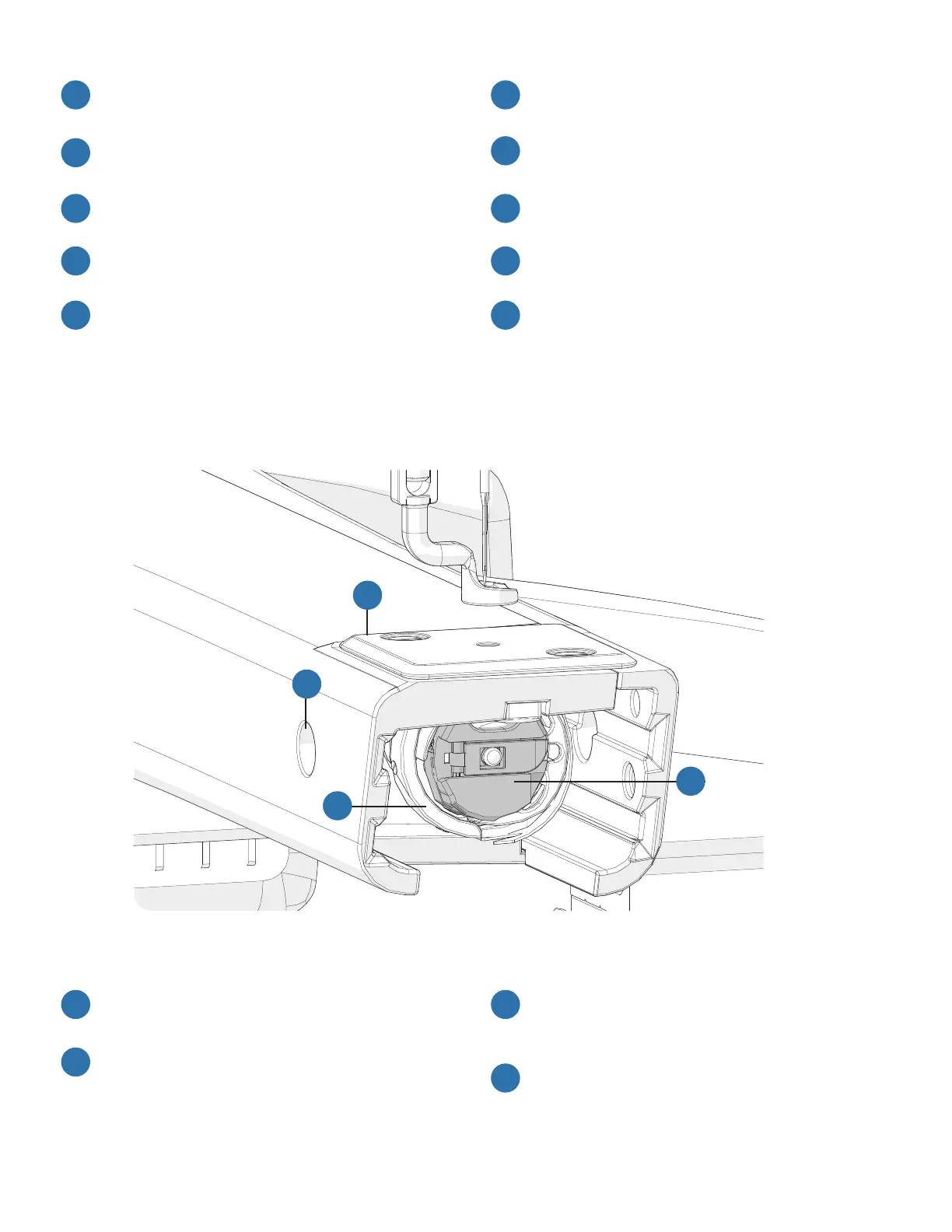

Hook Assembly (Front View)
