Graco Fusion User Manual

Piston Safety Lock
10 310648P
Piston Safety Lock
Engage piston safety lock whenever you stop spray-
ing, to avoid accidental triggering.
To engage piston safety lock: push knob in and turn
clockwise. When engaged, piston safety lock allows
some purge rod movement but shuts off fluid flow and
gun cannot spray.
To disengage piston safety lock: push knob in and
tur n counterclockwise until it pops out.
Loss of Air Pressure
In event of loss of air pressure while gun is triggered,
gun will continue to spray. To shut off gun, do one of the
following:
• Push hard or hit end of safety lock, to engage piston
safety lock.
• Close fluid valves A and B.
WARNING
Read warnings, page 5.

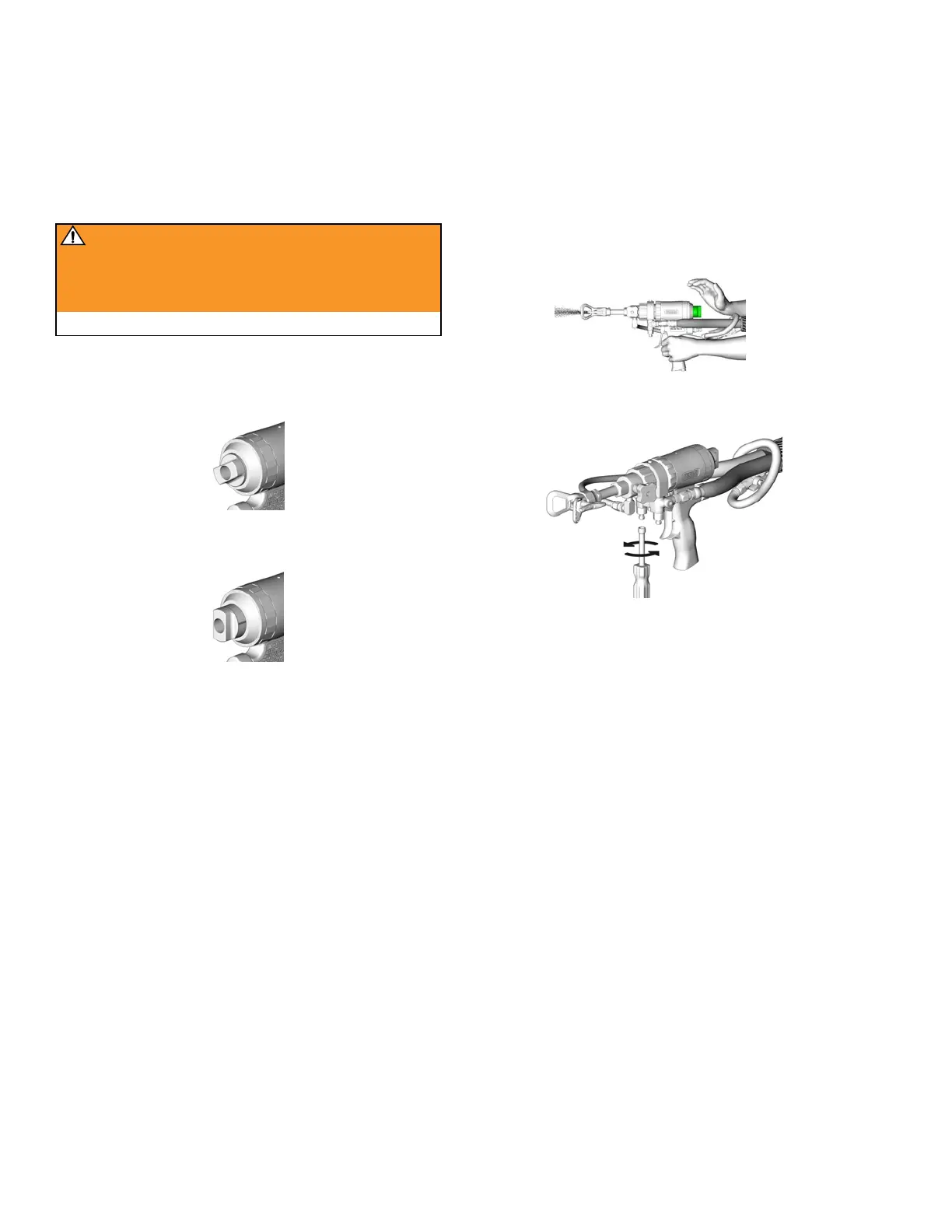

TI3850a
TI3849a
TI5003a
TI4967b
