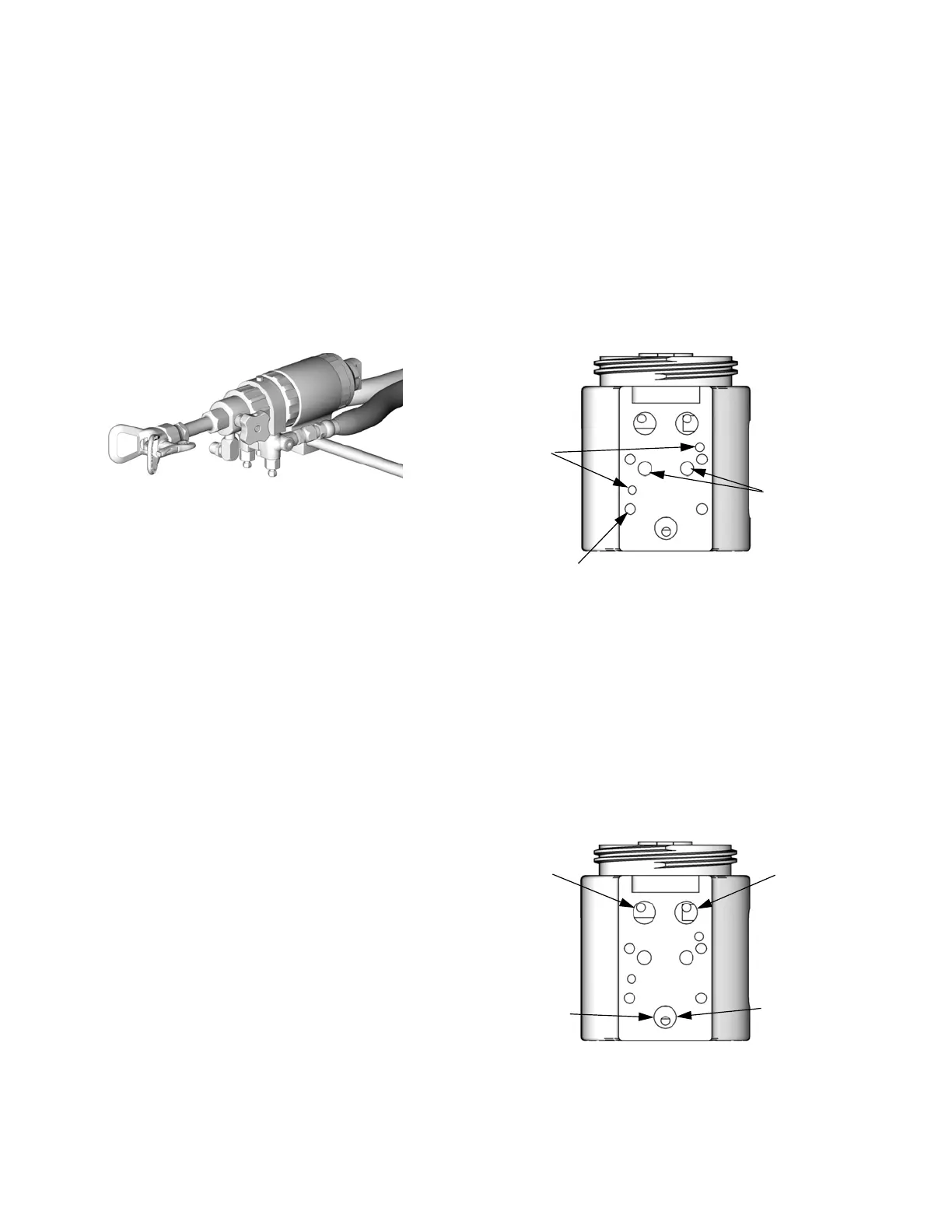

Mounting an Automatic Gun
12 310648P
Mounting an Automatic Gun
Mounting to a rod Mounting to a stationary
support robotic arm
To mount gun to stationary support or robot arm, see
mounting hole dimensions, page 53.
I - Activation
P - Purge/Clean-off
O - Deactivation
Connecting Airline and Accessories
I - Activation
P - Purge/Clean-off
O - Deactivation
1. To mount the gun on a 1/2 in. diameter rod, insert
the bar (A) through the hole in the gun body as
shown.
2. Secure the gun to the bar by tightening 1/4 in. - 20
mounting screws.
ti5007b
Two .128 in.
alignment
pin holes
Two 1/4 -
20 unc
holes
ti4751b
Four M5 x 0.08 in. (6.3 mm) holes
I
P
O
1. On the gun air supply line, install an air pressure
regulator.
• A minimum of 80 psi (0.55 MPA, 5.5 bar) air
pressure must be supplied to the gun for proper
operation.
• A four-way air valve, which exhausts cylinder air
in both directions, is required.
2. On the gun air supply line, install a bleed-type air
shutoff valve downstream of the gun air regulator.
3. On the main air line, install a bleed-type air shutoff
valve.
Clean off air
Three 1/8 npt
ports (air
inlet)
Gun
deactuation
Gun
actuation
ti4751b
I
P
O
