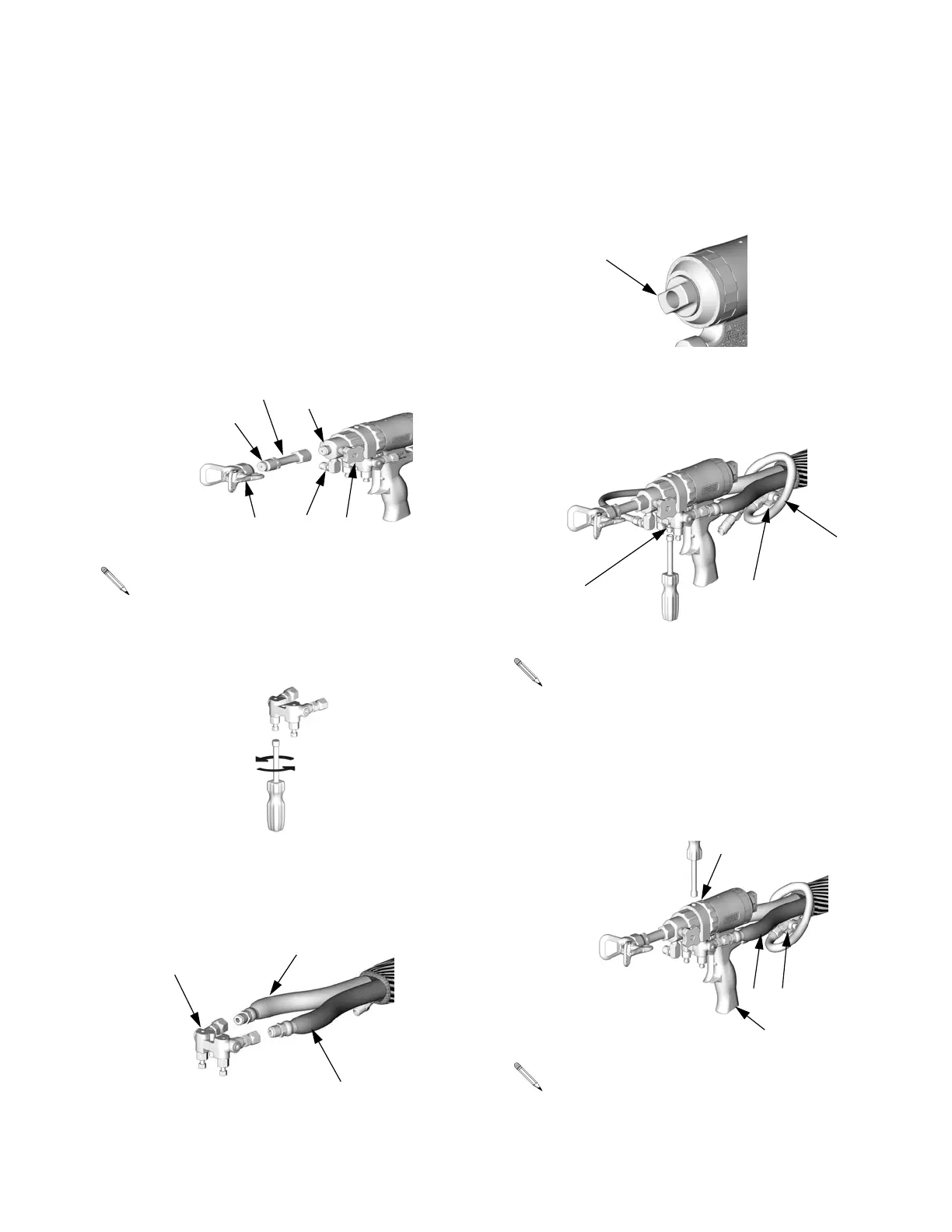

Setup
310648P 13
Setup
1. Read Hand Drilling of Mix Modules, page 15,
before performing setup procedure.
2. Assemble gaskets (40c), static mixer assembly
(40), o-ring (40d), adapter (41), and RAC tip and
guard (9, 63) assembly to fluid housing on front
end of gun.
• Solvent purge knob (V) and inlet (Y) can be
rotated in any direction.
3. Close fluid valves A and B.
4. Connect A (ISO) and B (RESIN) fluid hoses to fluid
manifold (G).
40, 40d
9, 63
TI5033b
40c
41
VY
TI2411A
A (ISO)
B (RESIN)
TI2417A
G
5. Engage piston safety lock (L), page 10.
6. Connect gun air whip hose (T) and air valve (U) to
main air hose. Attach fluid manifold (G) to gun.
To change position of fluid manifold or use
optional fluid inlets, see pages 21 and 22.
7. Connect air line to quick coupler (D). Turn on air.
Open air valve (U). Air valve (K) should be
screwed tight. There is no clean off air to adjust on
the solvent purge gun.
To use optional air inlet (J), see page 22.
TI3850a
L
G
U
T
TI4968b
D
K
U
TI4969b
J
