Repair
36 310648P
Rear Rod Seal
1. Follow Pressure Relief Procedure, page 19.
2. Flush Gun, page 24.
3. Remove fluid manifold (G). Leave air connected.
4. Disassemble Front End, page 30.

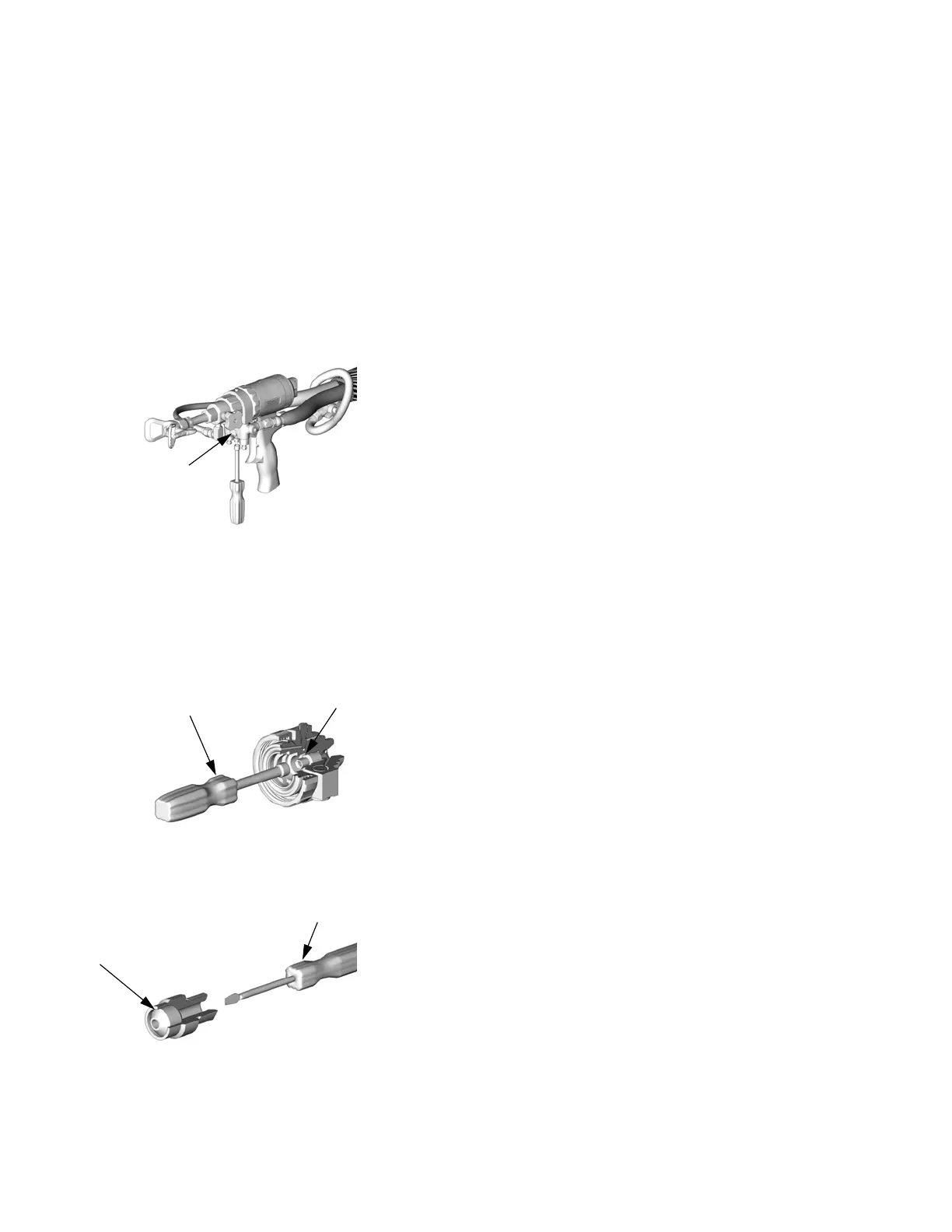

5. Remove rear rod seal nut (23) with nut driver (53).
6. Push out rear seal (46) with screwdriver (54).
G
TI4972b
23
TI3869a
53
54
46
TI3872a
7. Reassemble new rear seal (46) in rear rod seal nut
(23). Lubricate threads and install in fluid housing
(7) with nut driver.
8. Reassemble Front End, page 32.
9. Attach fluid manifold. Connect air. Return gun to
service.
