Pressure Relief Procedure
310648P 19

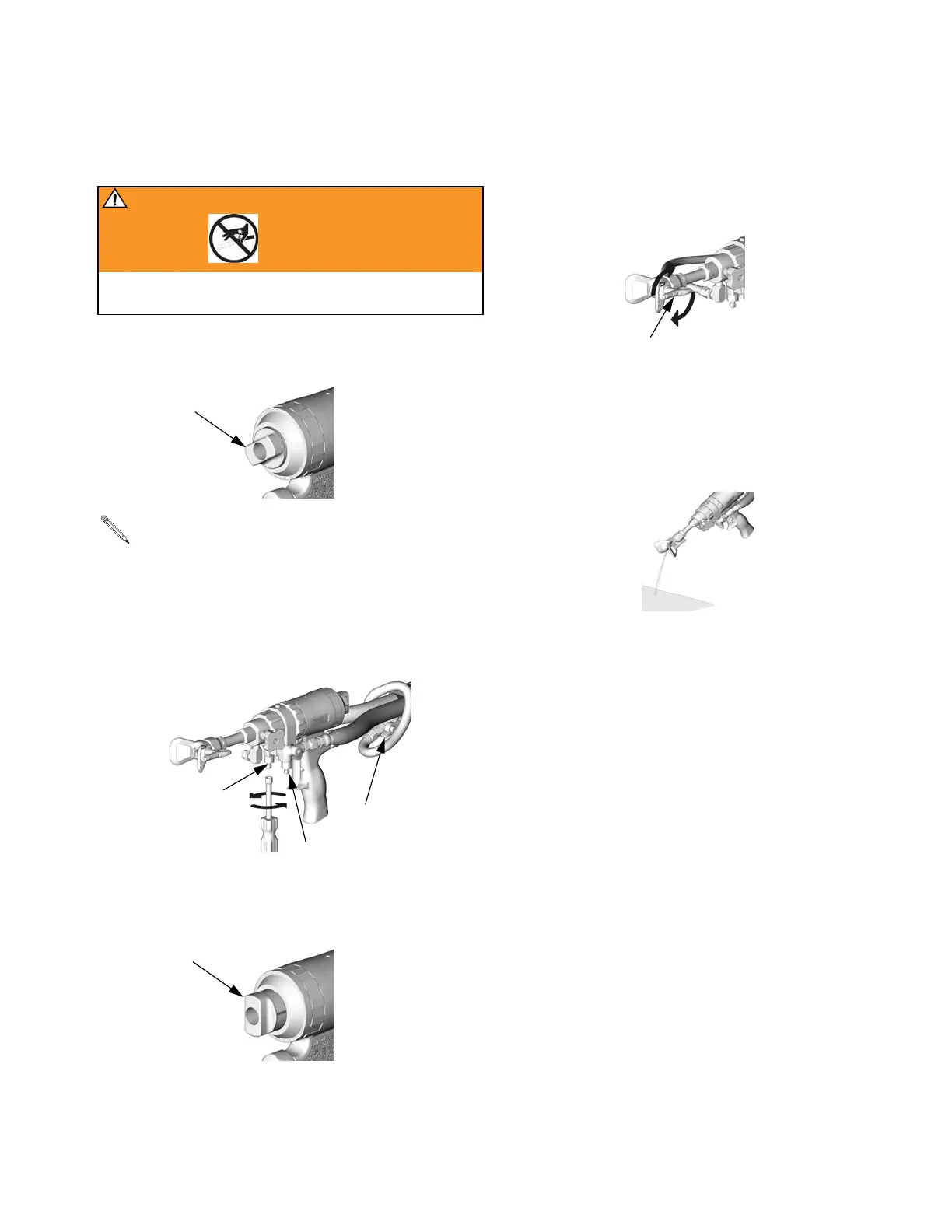

Pressure Relief Procedure
WARNING
Read warnings, page 5. Relieve pressure before
cleaning or repair ing gun.
1. Engage piston safety lock (L), page 10.
Air supply is required for gun actuation. Do not
disconnect gun air supply until fluid pressure is
relieved.
2. Close fluid valves A and B. Leave air valve (U)
open.
3. Disengage piston safety lock (L), page 10.
TI3850a
L
TI5005b
A
B
U
TI3849a
L
4. Turn RAC tip (X) to clean position.
5. Trigger gun onto cardboard or into waste container
to relieve pressure.
TI5097b
X
TI5009a
