Graco Fusion User Manual

Repair
310648P 37
Adjust Rear Rod Seal
1. Follow Pressure Relief Procedure, page 19.
2. Flush Gun, page 24.

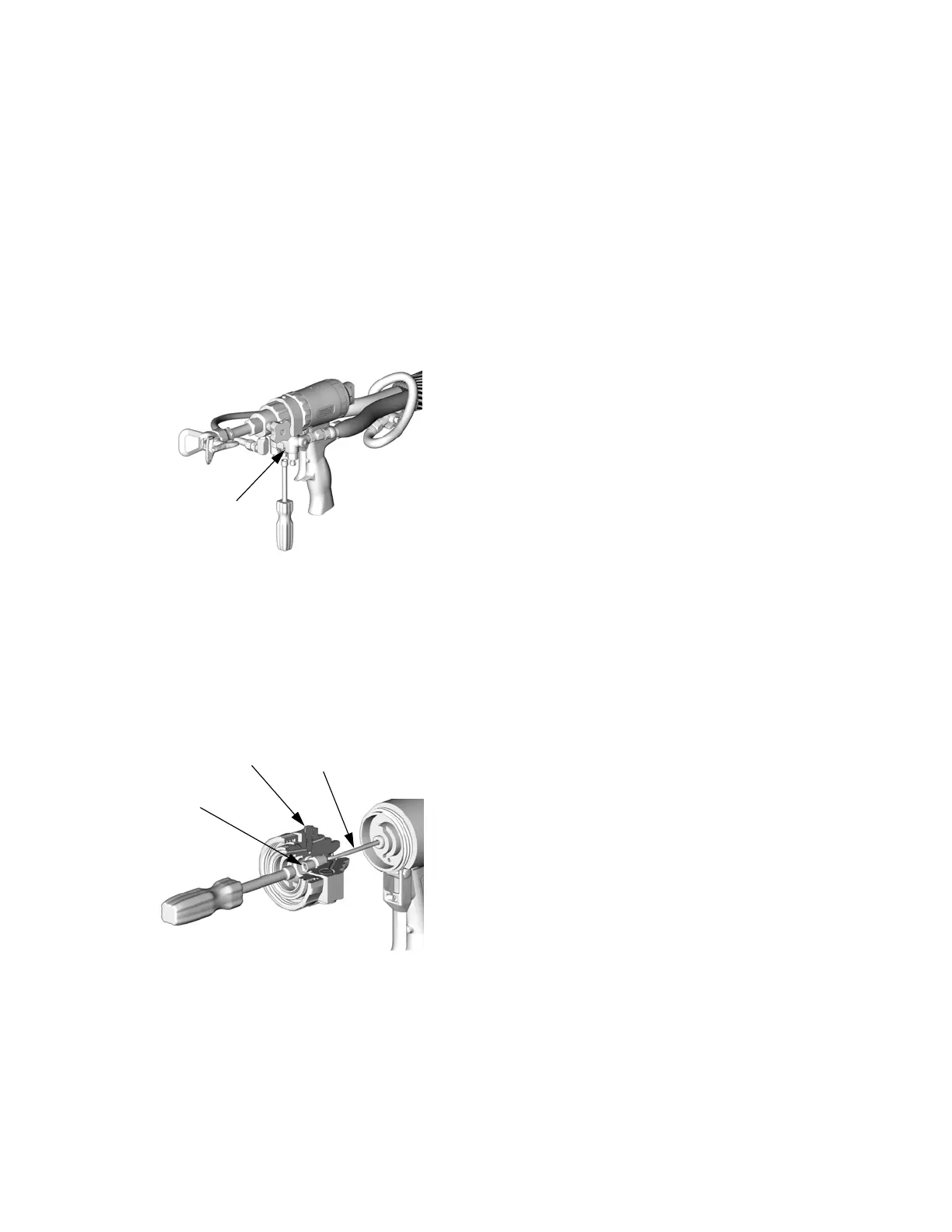

3. Remove fluid manifold (G). Leave air connected.
4. Disassemble Front End, page 30.
5. Assemble fluid housing (7) backwards onto lubri-
cated purge rod (31). Adjust rear rod seal nut (23)
with nut driver until drag is felt when sliding on rod.
TI4972b
G
7 31
23
TI3831a
6. Remove fluid housing (7) from rod (31).
7. Reassemble Front End, page 32.
8. Attach fluid manifold. Return gun to service.
