Graco Fusion User Manual

Parts
310648P 45
Parts
248597 and 248647 Solvent Purge Plural Component
Spray Guns, and 248603 Conversion Kit
Ref. Part No. Description Qty.
28❖ 248643 SOLVENT PURGE ASSY.;
includes items 28a-28m
1
28a 15E111 . HOUSING 1
28b 15E130 . CAP, air 1
28c 113618 . GASKET, FFR 1
28d 15E137 . SEAT 1
28e 248641 . KIT, retainer 1
28f 15E114 . KNOB 1
28g 101366 . SCREW, set 2
28h 248648 . PACKING KIT, includes 6 o-rings 1
28j 191892 . ELBOW, 90° 1
28k 191872 . ADAPTER 1
28m 119796 . GASKET 1
40 248642 STATIC MIXER; includes items
40a-40d
1
40a 15E125 . HOUSING 1
40b 15E126 . MIXER, static 3 in. 1
40c 166969 . GASKET 1
40d 104892 . PACKING, o-r ing 1
TI5034a
TI5035a

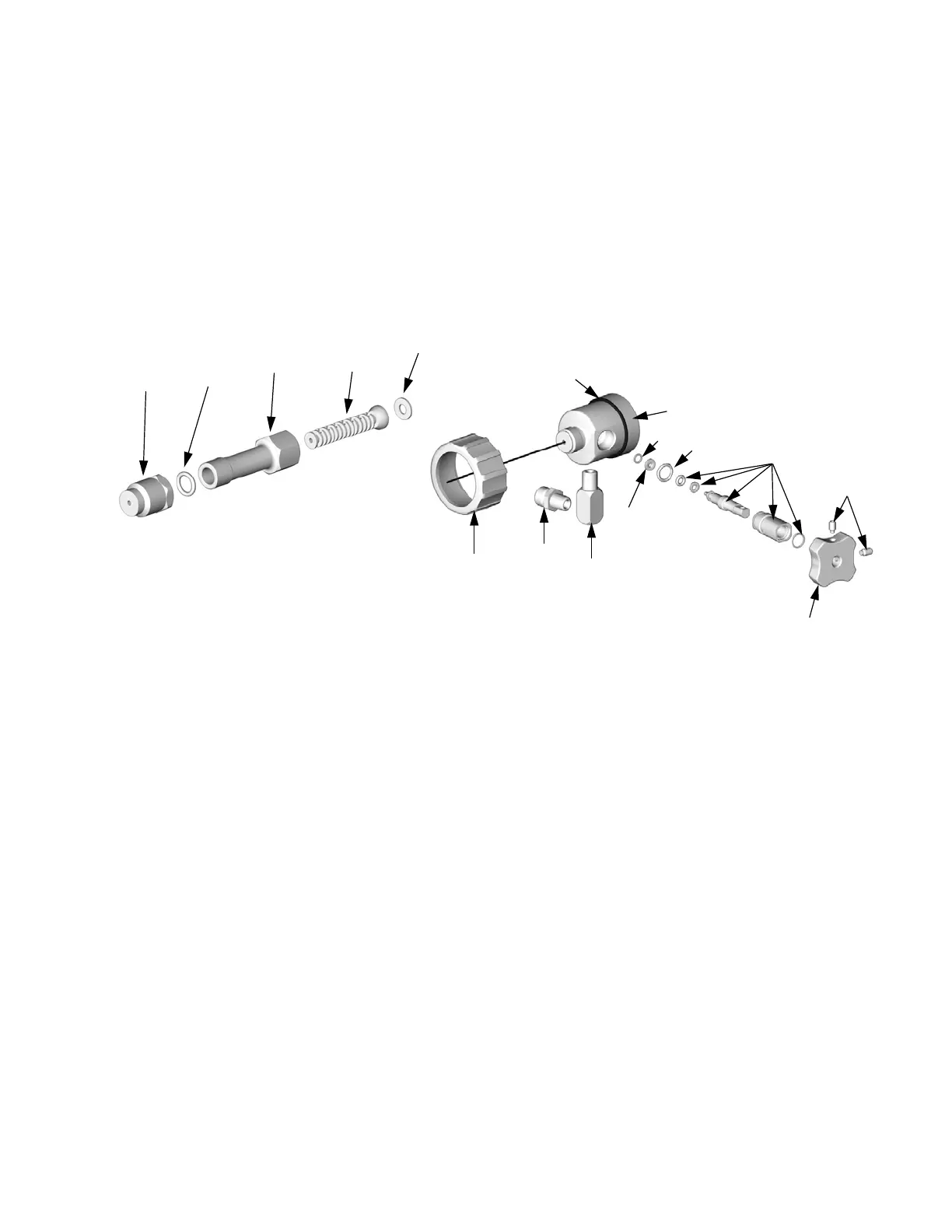

Static Mixer Assembly
Solvent Purge Assembly
40d
40a
40b
40c
28b
28k
28j
28a
28g
28e
28f
28c
28h
28d
41
28m
