Repair
32 310648P

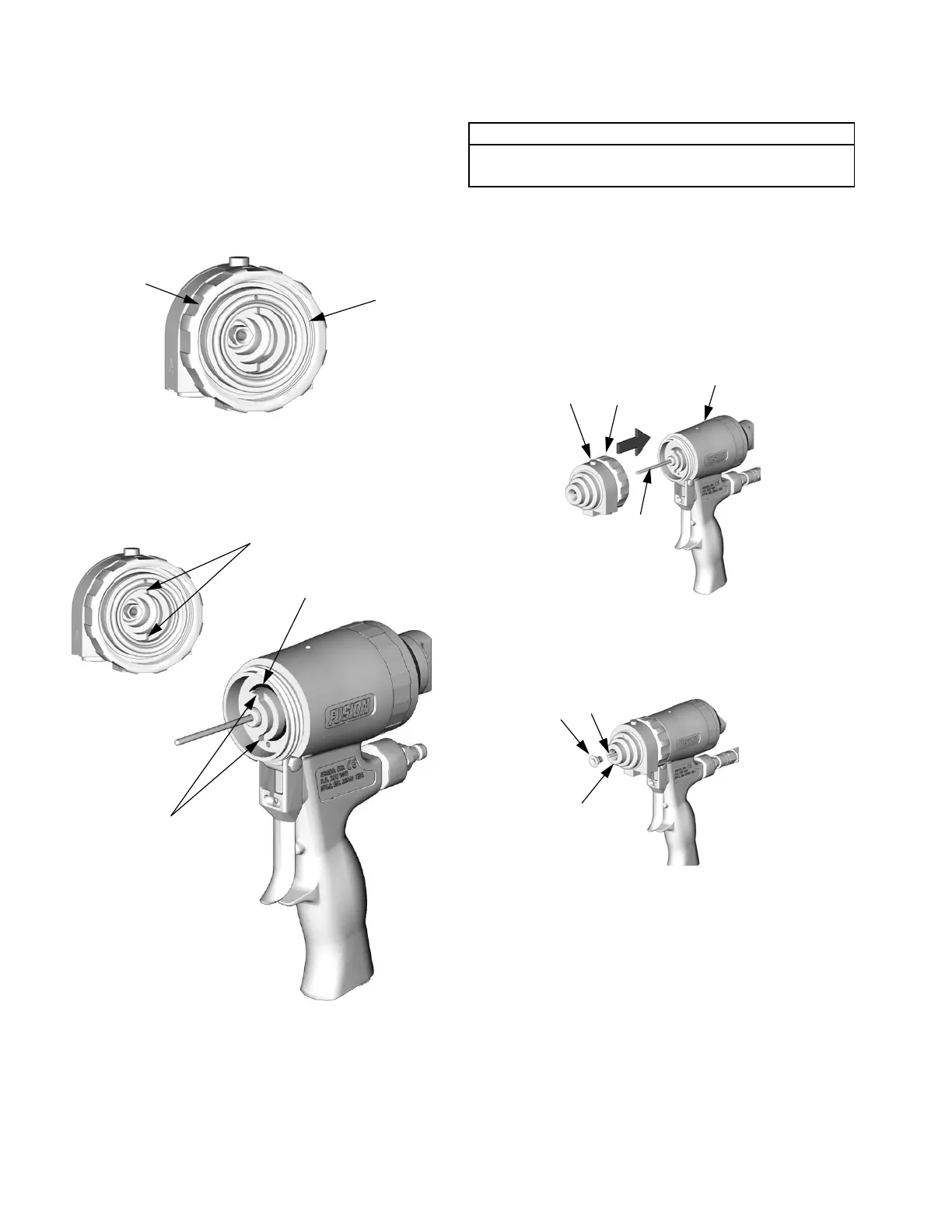

Reassemble Front End
1. Check that o-rings (20, 21) are in position. Liberally
lubricate o-rings, threads of lock ring (11) and han-
dle (1), and outside of lock ring.
2. Orient front end as required for desired fluid mani-
fold mounting (bottom mounting shown). Align
slots (Y) to engage tabs (Z).
TI3871a
11
21
TI3873a
TI3871a
Z
Y
20
CAUTION
To prevent damage to purge rod (31), always slide
front end straight onto purge rod.
3. Carefully slide front end straight onto purge rod
(31). Screw lock ring (11) onto handle (1) as far as
possible by hand. Push on front end to ensure it is
properly seated. Continue screwing lock ring onto
handle until tightened very securely. When prop-
erly assembled, lock ring is snug against handle.
4. Push mix module (39) onto rod (31) as far as pos-
sible.
TI3866a
11
1
31
7
39
7
TI3845a
31
To Next Page
