Repair
310648P 31

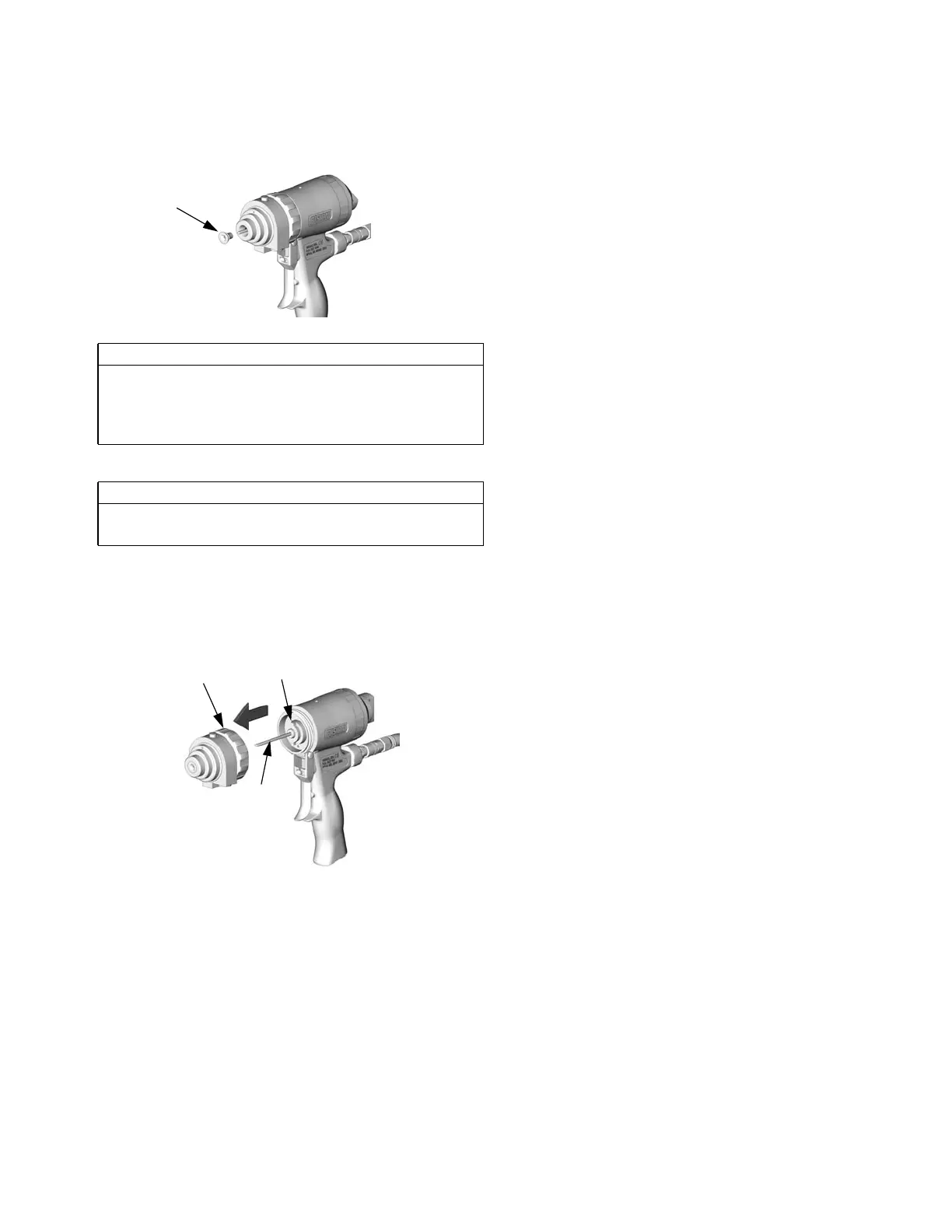

5. Remove mix module (39).
CAUTION
If lock ring (11) is stuck due to material buildup, do not
force it by turning entire front end. Locating tabs (Z)
may break off. Soak front of gun in solvent to soften
cured material and free lock ring.
CAUTION
To prevent damage to purge rod (31), always pull
front end straight off handle (1).
6. Unscrew lock ring (11) to remove front end and
mix module. Pull front end straight off handle.
Ti3846a
39
TI3865b
11
31
Z
