Graco Fusion User Manual

Repair
34 310648P
Slip-Fit Polycarballoy Mix
Module
See page 50 for available Slip-Fit Polycarballoy Mix
Module sizes.

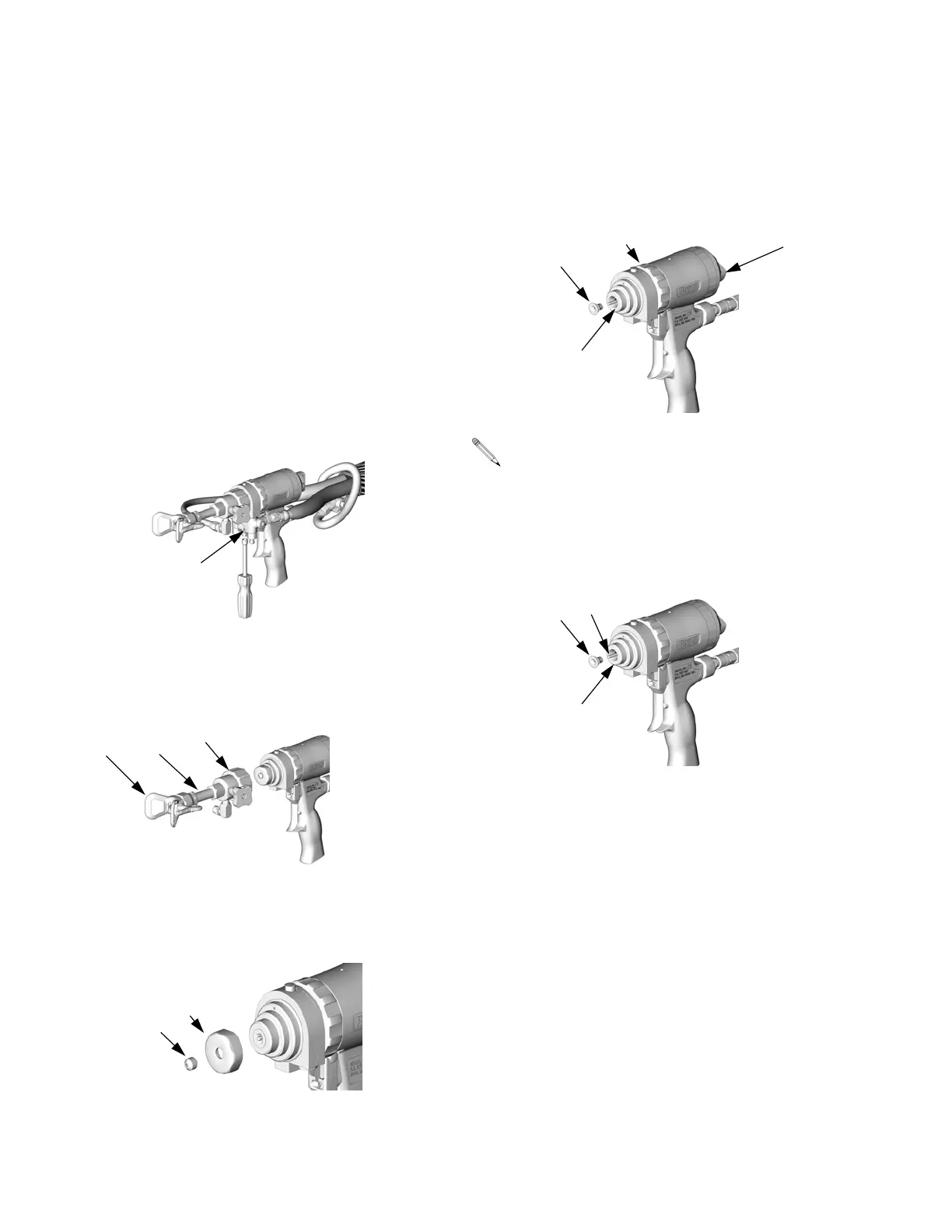

1. Follow Pressure Relief Procedure, page 19.
2. Flush Gun, page 24.
3. Remove fluid manifold (G). Leave air connected.
4. Remove RAC tip and guard (9, 63), static mixer
(40), and solvent purge assembly (28).
5. Remove mix module nut (25), using a wrench.
Remove front seal (46).
TI4972b
G
TI5032b
9, 63
40
28
TI3843a
46
25
6. Disengage piston safety lock (L), page 10. Trigger
and detrigger gun once to release mix module (39)
from fluid housing (7). Remove mix module.
Engage piston safety lock.
If mix module (39) does not protrude from fluid
housing (7), slightly loosen then retighten lock
ring (11), to allow gripping of edge for removal.
7. Push mix module (39) onto rod (31) as far as pos-
sible.
39
7
TI3845a
11
L
39
7
TI3845a
31
